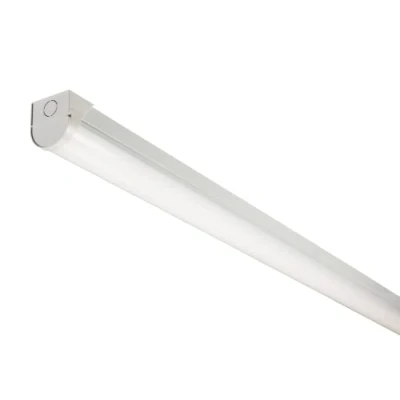

KnightsBridge 230V 6ft 48W DALI CCT Adjustable Batten
Description
Electrical World
230V 6ft 48W DALI CCT Adjustable BattenCCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and Simple installation. CCT adjustable (3000K, 4000K, 5700K) DALI control gear for connection into simple room or networked building control system High efficiency Rear and end conduit fixings Hinged gear tray Push-fit loop in-loop out connectors Simple one step installation Technical Specification:Length: 1790Width: 61Projection: 71Construction: Pressed steelFinish: WhiteClass: IIP Rating: IP20Primary Voltage: 230V 50HzMounting Method: SurfaceDiffuser: OpalDriver: IncludedAmbient Operating Temperature: -20~40Lamp Technology: LEDNo. of Lamps/LEDS: 280Energy Rating (Class) post 2021 SLR: CBeam Angle: 135CCT: 3000/4000/5700Light Colour: CCTLumens: 6050/7040/6580Wattage: 48Actual Lumens (Light Source only): 7820.67Circuit Wattage: 48.56Efficacy: 161.05Actual CRI: 86.6SDCM Tolerance: 2.92Operating Current: 0.216PF (Power Factor): 0.975Driver Type: DALIMax. Output: 63Output Voltage: 25-42Output Current: up to 1500Power Factor: 0.9Isolation: SELVAmbient Temperature (Ta): 50Case Temperature (Tc): 90Dimensions: Length: 1790mmWeight: 2.1KgWarranty: 5 Years
Description
(3)
230V 6ft 48W DALI CCT Adjustable BattenCCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and Simple installation. CCT adjustable (3000K, 4000K, 5700K) DALI control gear for connection into simple room or networked building control system High efficiency Rear and end conduit fixings Hinged gear tray Push-fit loop in-loop out connectors Simple one step installation Technical Specification:Length: 1790Width: 61Projection: 71Construction: Pressed steelFinish: WhiteClass: IIP Rating: IP20Primary Voltage: 230V 50HzMounting Method: SurfaceDiffuser: OpalDriver: IncludedAmbient Operating Temperature: -20~40Lamp Technology: LEDNo. of Lamps/LEDS: 280Energy Rating (Class) post 2021 SLR: CBeam Angle: 135CCT: 3000/4000/5700Light Colour: CCTLumens: 6050/7040/6580Wattage: 48Actual Lumens (Light Source only): 7820.67Circuit Wattage: 48.56Efficacy: 161.05Actual CRI: 86.6SDCM Tolerance: 2.92Operating Current: 0.216PF (Power Factor): 0.975Driver Type: DALIMax. Output: 63Output Voltage: 25-42Output Current: up to 1500Power Factor: 0.9Isolation: SELVAmbient Temperature (Ta): 50Case Temperature (Tc): 90Dimensions: Length: 1790mmWeight: 2.1KgWarranty: 5 Years
Net LightingCCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and simple installation. - CCT adjustable (3000K, 4000K, 5700K) - DALI control gear for connection into simple room or networked building control system - High efficiency - Rear and end conduit fixings - Hinged gear tray - Push-fit loop in-loop out connectors - Simple one step installation
AmazonCCT adjustable (3000K, 4000K, 5700K) DALI control gear for connection into simple room or networked building control system High efficiency Rear and end conduit fixings Hinged gear tray
