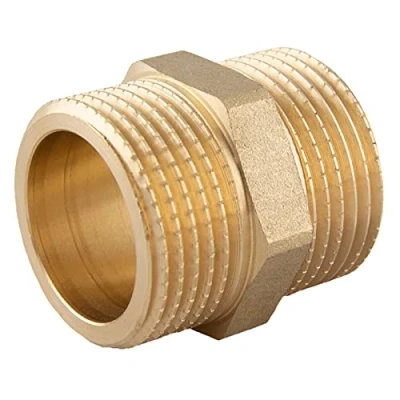

konst install 5904473000145, Double Nipple Ag/Ag, 3/8"

Double nipple AG/AG: when purchasing, you can choose between 7 different sizes - 3/8" 24 x 23 x 23 mm, 1/2" 30 x 30 x 30 mm, 3/4" 32 x 35 x 35 mm, 1" 38 x 44 x 44 mm, 1 1/4" 40 x 540 x 54 x 54 x 54 x 54 x 54 x 5 4mm, 1 1/2 inch 46 x 59 x 59 mm, 2 inch 52 x 71 x 71 mm Use: double nipple AG/AG are intended for the connection of pipes and system components made of copper, copper alloys, steel, cast iron and many others with threaded connections according to ISO 228-1:2005 Areas of use: the double nipple AG/AG are suitable for use in systems for central heating, cold and hot water supply (including drinking water) as well as cooling and solar systems filled with 50% glycol water mixture Technical parameters: double nipple AG/AG made of brass CW617N, max. Operating pressure: 16 bar (1.6 MPa), min. Working temperature 30 °C, maximum working temperature: +180 °C for easy screw connection and +120 °C for double screw connection Fitting: brass fittings can be installed in vertical, horizontal and diagonal pipes in any position. For fittings without seals on the threaded ends, sealants such as hemp or Teflon sealing tape should be used, Weight: 0.0440924524 Pounds, Manufacturer: konst-install
