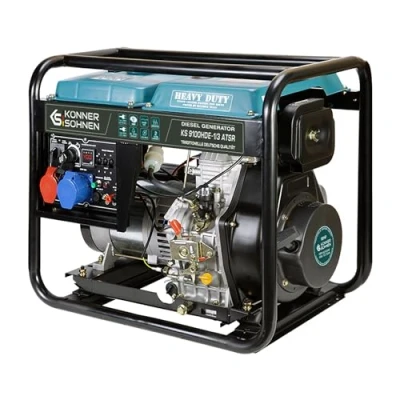

KS 9100HDE 1/3 ATSR diesel generator with VTS phase switching system, maximum power of 7500 W (400 V) / 6400 (230 V), 1x16 A

Energian

* Hero */ .hero { text-align: center; margin: 0 auto 30px; max-width: 900px; font-family: Arial, Helvetica, sans-serif; } .hero h2 { font-size: 28px; margin-bottom: 10px; font-weight: 700; } .hero p { font-size: 20px; color: #333; line-height: 1.6; margin: 0 auto; } /* Features (side image layout – standard) */ .product-features.product-feature { display: flex; align-items: flex-start; gap: 20px; margin-bottom: 28px; } .product-features.feature-photo img { max-width: 120px; border-radius: 10px; box-shadow: 0 2px 8px rgba(0,0,0,0.1); } .product-features.feature-title h3 { margin: 0 0 10px; font-size: 18px; font-weight: 700; } .product-features.feature-description { margin: 0; line-height: 1.6; } /* Technical Specifications */ .product-attributes table { width: 100%; border-collapse: collapse; margin-top: 10px; font-size: 16px; } .product-attributes th,.product-attributes td { border: 1px solid #ddd; padding: 8px; text-align: left; } .product-attributes th { background: #f3f3f3; font-weight: 700; } .attribute-row.note,.note { font-size: 13px; color: #555; margin-top: 6px; } /* Media */ .media-container img { max-width: 100%; border-radius: 10px; box-shadow: 0 2px 6px rgba(0,0,0,0.1); } .media-title { display: block; text-align: center; margin-top: 6px; font-weight: 500; font-size: 14px; } /* Videos */ .video-container { margin-bottom: 20px; } Könner & Söhnen KS 9100HDE-1/3 ATSR (EURO 5) Heavy Duty Diesel Generator A professional-grade diesel generator built for demanding use. The Heavy Duty series combines a licensed DIMAX engine, intelligent AVR voltage regulation and optional ATS compatibility with rugged construction. Choose single-phase 230 V or three-phase 400 V via the model’s supported configuration, and benefit from pre-heat starting, ergonomic controls and extended service life. Features Quality, Robust K&S Branded Engines Engines for diesel and petrol models are manufactured under licence from DIMAX Int. GmbH and carry the K&S logo. High engine output relative to the alternator ensures the stated power and stable performance across the load range. Every engine is endurance-tested, then inspected. Each engine and generator has an individual serial number for traceability. Compliant with European quality standards, including the latest EURO V emissions. Automatic Transfer Switch (ATS) The ATS output enables connection of the KS ATS 4/25 unit. It will start the generator automatically when mains power fails and stop it when power is restored. Features an 8-pin connector for quick setup. Heavy Duty Extended Service Life HEAVY DUTY diesel generators are engineered for longer continuous operation with an engine resource exceeding 3,000 working hours (confirmed by multi-hour, multi-level testing and warranty). Regular maintenance is required to sustain peak performance. Ergonomic Control Panel Simple, intuitive controls. The intelligent LED display shows run hours, frequency and voltage to help manage load and schedule maintenance, extending the generator’s

Amazon

TYPE: Reliable motor with copper winding "Könner & Söhnen" with increased service life of 3000 operating hours and alternator ensure you trouble-free and long-lasting use at maximum load INNOVATIVE: VTS phase switching system (voltage transfer switch) allows for the use of the generator in three-phase current (400 V) or single-phase mode (230 V) without loss of power! EASY START: The E-start function and the preheater of the fuel mixture allow the generator to start easily and effortlessly without physical exertion in any weather. SAFETY: Our unit is equipped with an automatic voltage regulator, low oil protection and an overload protection switch, as well as a reinforced steel frame, anti-vibration system and galvanised surface protection, which ensure reliability and safety. Brand: More than 10 years of experience in the production of generators, the use of high-quality materials and components, and tests at all stages of production allow for maximum enjoyment during operation., Weight: 268.96395964 Pounds, Manufacturer: K&S Könner&Söhnen

ManoMano

General description The KS 9100HDE-1/3 ATSR diesel generator from the HEAVY-DUTY series by the German brand Könner & Söhnen is an ideal solution for backup power supply for small houses, workshops, or as a reliable power source for construction and repair work. This robust generator features a maximum power output of 7500 W (400 V) and 6400 W (230 V), making it versatile for various applications. Technical specifications Engine Model: Könner & Söhnen KS 520HD Engine Type: Four-stroke, diesel-powered, air-cooled Engine Volume: 498 cm³ Engine Power: 18.0 HP Fuel Type: Diesel Fuel Tank Volume: 11 L Crankcase Volume: 1.65 L 50% Power Working Time: 11 hours Noise Level (Lpa at 7m / Lwa): 71/96 dB Max./Nominal Power (400 V): 7.5/7.0 kW Max./Nominal Power (230 V): 6.4/5.9 kW Voltage: 400 V/230 V Frequency: 50 Hz Current (max.): 27.83 A (230 V) / 13.54 A (400 V) Engine Start: Manual/Electro Sockets: 1x16 A/400 V, 1x32 A/230 V, 1x12 V DC Compatibility and accessories VTS Phase Switching
