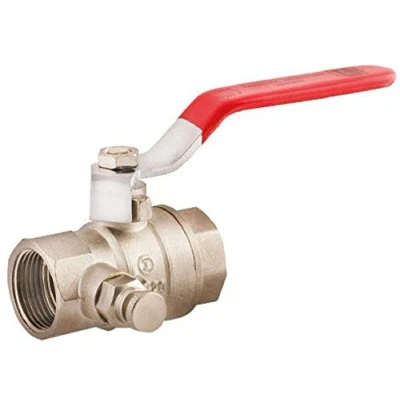

Lever Inline Water Ball Valve 1" Inch BSP Female Thread with Drain

ManoMano

General description A ball valve is a valve with a spherical disc that controls the flow through it. The sphere has a hole, or port, through the middle, allowing flow when aligned with both ends of the valve. When closed, the hole is perpendicular to the ends, blocking flow. The handle or lever indicates the valve's position, making it easy to see whether it is open or closed. Ball valves are durable and provide excellent shutoff even after years of disuse, making them a preferred choice for shutoff applications over globe and gate valves. While they do not offer fine control for throttling, they can be used in such applications. Technical specifications Size: 1" BSP Max. working pressure: 3MPa (30 bar) Temperature range: -20 to 180°C Body, ball, pin, and plug material: Brass Ball/pin sealing material: Teflon Handle material: Steel Usage Drinking water Heating/cooling systems Industrial installations Air-conditioning systems

Amazon

Size: 1" BSP European Thread; max. working pressure: 3MPa (30 bar); temperature range: -20 - 180C; body, ball, pin, plug made of brass; ball/pin sealing: teflon; handle made of steel. For drinking water; heating/cooling; industrial instalations; air-conditioning., Weight: 1.543235834 pounds, Manufacturer: Idmar
