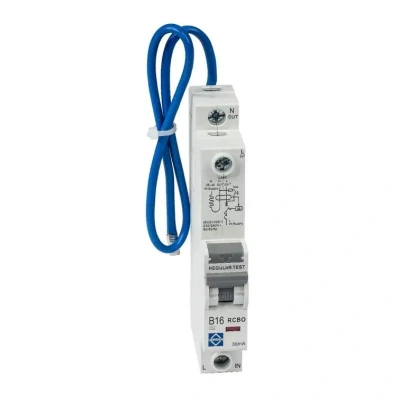

Lewden 16A Single Pole 1 Module B Curve 6kA 30mA Type A RCBO

Electrical World

6kA RCBOsDesigned and tested for use with Lewden branded distribution boards.Residual current circuit breaker with integral overcurrent protection.Class A.Single module RCBOs are suitable for use in TN-S, TN-C-S, & TT network systems.Technical Specification:Rated Current: 16ATrip Curve: BRCD Class: AFor Cables ø: 1-16mm²Breaking Capacity: 6Frequency: 50/60HzPoles: 1P+NRated Operating Voltage: 230VExecution: DIN RAIL MOUNTINGResidual Current: 30mANet Weight: 0.17KGDimensions: 114x18x76mm (HWD)Standards: BS EN 61009-1

National Shower Spares

Lewden RCBO 16A 30mA B Curve 1MOD 6KA Type A (RCBO-16/30/SPA). 6kA 30mA single module RCBO type-B 16A, protects against earth leakage, overload and short circuit RCD class A Designed and tested for use with lewden branded distribution boards Residual current circuit breaker with integral overcurrent protection Single module RCBO's are suitable for use in TN-S, TN-C-S and TT - network systems Genuine brand new NSS product, covered by a NSS manufacturer's guarantee.

City Plumbing

The Lewden range of circuit protection devices are designed and tested for use with Lewden branded distribution boards. This device must be installed by a skilful electrician in accordance with the latest edition of the IET wiring regulations for electrical installations BS7671
