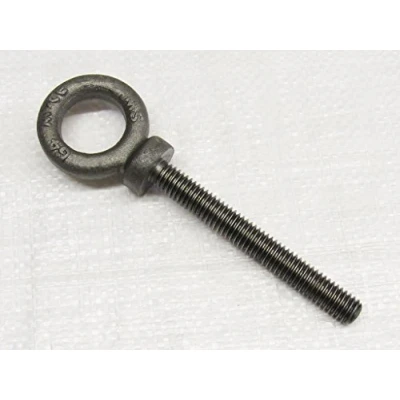

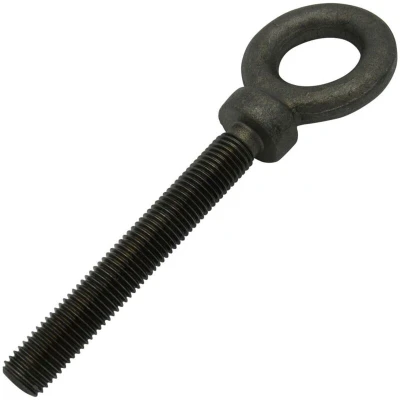

Long Shank Lifting Eyebolt 5/8" (Dynamo Self Colour Eye Bolt 0.8 Ton)

ManoMano

Long Shank Dynamo Eyebolt Thread DIA - 5/8" Finish - Self Colour CODE SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) Pitch SFIDEL06 0.1 19 42 22 6 85 25 10 103 20 SFIDEL08 0.15 19 42 22 7.7 8.5 25 10 103 18 SFIDEL10 0.25 19 42 22 9.3 9 25 10 103 16 SFIDEL12 0.5 24.5 49 29 12.5 11 36 11 105 12 SFIDEL16 0.8 29.5 58 31.5 15.5 13 41.5 13.5 113 11 SFIDEL20 1.2 36 73.5 40 19 16.5 55.5 16.5 130 10 SFIDEL24 2 40 88 49.5 25 14 67 19 130 8 These Eyebolts Are Excellent For Numerous Applications. These Are Hugely Popular Within The Lifting Industry As They Are Tested And Certified For Lifting. These Eybolts Feature A Long Shank For Applications Where A Longer Thread Is Required. Dynamo Eyebolts Also Feature A Larger Eye Diameter For Applications That Require Larger Attachments. These Eyebolts Must Only Be Used For Straight Lifts And Used By A Competent Person. Test Certificate Included (Sent via eMail) Please Note We Supply A Huge Variety Of Lifting Equipment ***FREE

Amazon

SWL = 0.8 Ton A - 29.5MM, B - 58MM, C - 31.5MM, D - 15.5MM E - 13MM, F - 41.5MM, G - 13.5MM, H - 113MM Pitch 11 Finish - Self Colour
