Lumonic KSD301 Bimetal temperature switch 150 C I opening thermal 250V 10A Adjustable with

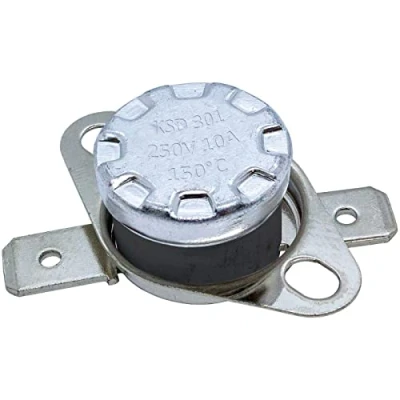

PRODUCT - This is a KSD301 temperature switch with switch contact (open contact). The case with dimensions d15x12mm is made of high quality metal and plastic. APPLICATION - Depending on the variant, the bimetallic thermorswitch can be used as a closing or opening contact. The connection is carried out using a flat plug measuring 6.3 x 0.8 mm. PERFORMANCE - Between 40°C and 200°C, almost all temperature levels are covered. For this variant, the switching temperature is 150° C. (± 5° C.) and the reset temperature is 120° C. (±10° C.). Resistance: Our adjustable thermal switch can withstand up to 250V and 10A. In addition, the contact resistance of our bimetal switches is 50 mOhm. Installation – Thanks to the small size of the bimetallic thermoswitch, the installation is child's play and takes only a few minutes.
