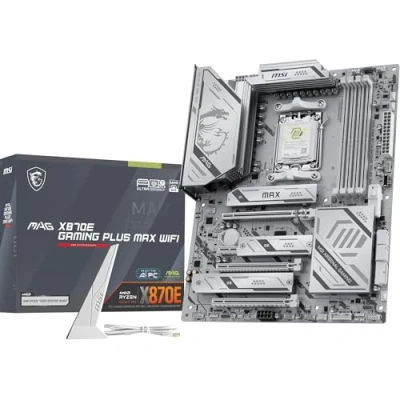

MAG X870E GAMING PLUS MAX WIFI

Msi Mag X870e Gaming Plus Max Wifi Motherboard. Unleash peak performance with the MSI MAG X870E GAMING PLUS MAX WIFI motherboard. Engineered for AMD Ryzen 9000/8000/7000 series processors, it boasts a robust 14+2+1 Duet Rail Power System, advanced Frozr cooling, and support for blazing-fast DDR5 memory. Experience next-gen gaming with PCIe 5.0, 5G LAN, and the latest Wi-Fi 7 connectivity. Designed for gamers seeking premium hardware and incredible value. Msi X870E Gaming Plus Wifi Motherboard.Conquer the Competition:- The X870E GAMING PLUS WIFI is an ATX gaming motherboard built with a 14 Duet Rail Power System and the latest AMD X870E chipset that supports AMD Ryzen series 9000 / 8000 / 7000 desktop processors, with PCIe 5.0, 5G LAN, Wi-Fi 7, and DDR5 that balances value and premium hardware.Ryzen 9000, X870E Chipset, Ultra Power, Frozr Design, DDR5 Memory:- The X870E GAMING PLUS WIFI motherboard supports AMD Ryzen 9000, 8000 and 7000 series desktop processors.- Socket Type: AM5- Chipset: AMD X870EUltra Power: 14+2+1 Phase Dual Rail Power System with 60A Smart Power Stage.With the exclusive Core Boost technology and dual 8-pin power connectors, the X870E Gaming Plus Wifi is capable of delivering loads higher than 100A per rail, ensuring stable power supply to the CPU for optimal performance in demanding gaming configurations:- Digital PWM Controller- 14+2+1 Duet Rail Power System (60A / SPS)- 2 Phase SOC Power- 1 Phase MISC PowerFrozr Design:- Frost Guard: Extended heatsink design, 7W/mK thermal pads for MOSFETs, additional thermal pads for chokes, and EZ M.2 Shield Frozr II for improved thermal dissipation.- Frost Sync: Connect and synchronize cooling through strategically placed connectors including CPU Fan (2A), Combo Fan (3A, supports system pump and fan), and System Fans.- Frost Control: Manage speed and temperature of all system fans from MSI Center with Cooling Wizard and Frozr AI Cooling.4x Dual Channel DDR5 (8200+ MT/s OC):- Memory Boost: A completely isolated memory circuit ensures pure data signals for optimal gaming and overclocking performance.- High Efficiency Mode: Enabling High Efficiency Mode in MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find the optimal setting based on their memory module quality.- EXPO Profiles: EXPO profiles in MSI BIOS are optimized by MSI OC LAB and can be easily enabled with automatic power configurations to improve memory speed and stability.Reinforced PCIe 5.0 x16 Slots:- MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage matters, Steel Armor also protects the contact point from electrical interference.- 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor)- 1 x PCIe 4.0/3.0 x4 slot- 2 x PCIe 3.0 x1 slotsGen5 M.2 Connector:- The X870E GAMING PLUS WIFI motherboard features MSI M.2 slots:- 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)- 2 x Gen4 x4 64Gbps slotsDIY Friendly:- EZ M.2 Shield Frozr II: MSI´s patented cover features a tool-less design, eliminating concerns about lost or over-tightened screws.- EZ M.2 Clip II: Install or remove an SSD with just a push of the latch, no screws needed.- EZ PCIe Clip II: Easily remove your graphics card by pressing the tab-like latch with a single finger, even in tight spaces.- Antenna-free: MSI´s new Wi-Fi antenna not only boasts an attractive design but also incorporates a magnetic system for easy placement and adjustment.Ultra Connect:- 5G LAN: A 5Gbps Realtek LAN controller provides a premium networking experience.- Wi-Fi 7: Features a high-speed Wi-Fi 7 solution (ultra-low latency, large bandwidth) and Bluetooth 5.4 technology.- USB4 Type-C: Connect devices and transfer files at speeds up to 40Gbps, with support for 4K 120Hz displays.Features:- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)- Ultra Performance: 14+2+1 Phase Duet Rail Power System, Dual 8-pin CPU Power Connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade material- Frost Guard: Extended Heatsink, 7W/mK MOSFET Thermal Pads, Additional Choke Thermal Pads, and EZ M.2 Shield Frozr II, designed for high-performance systems and seamless experience- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna- Lightning Fast Gaming Experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2- Ultra Connectivity: USB4 and 5G LAN with Wi-Fi 7 solution, the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transfer- Audio Boost: Reward your ears with studio-grade sound quality for an immersive gaming experienceSpecifications:Chipset:- AMD X870ECPU:- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Desktop ProcessorsSocket AM5Memory:- 4 x DDR5 UDIMM slots, Max. capacity 256GB- DDR5 Memory Support: 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sMaximum Overclocking Frequency of Ryzen™ 9000 Series Processors:- 1DPC 1R: Max speed up to 8200+ MT/s- 1DPC 2R: Max speed up to 6400+ MT/s- 2DPC 1R: Max speed up to 6400+ MT/s- 2DPC 2R: Max speed up to 6000+ MT/s- Supports AMD POR Speed and JEDEC Speed- Supports Memory Overclocking and AMD EXPO™- Supports Dual-Channel Mode- Supports Non-ECC, Un-buffered Memory- Supports CUDIMM, Clock controller bypass mode onlyIntegrated Graphics:- 1 x HDMI™ Port- Supports HDMI™ 2.1, Maximum resolution of 4K60Hz- 1 x USB Type-C DisplayPort- USB4® Port, Supports DisplayPort 1.4 with HBR3 via USB Type-C, Maximum resolution of 4K120HzSlots:- 3 x PCI-E x16 Slots (Quantity)- 1 x PCI-E x1 Slot (Quantity)- PCI_E1: PCIe 5.0, supports up to x16 (from CPU)- PCI_E2: PCIe 3.0, supports up to x1 (from Chipset)- PCI_E3: PCIe 4.0, supports up to x4 (from Chipset)- PCI_E4 Gen PCIe 3.0 supports up to x1 (from Chipset)- PCI_E1 Slot- Supports PCIe 5.0 x16 (for Ryzen™ 9000/7000 Series processors)- Supports PCIe 4.0 x8 (for Ryzen™ 8700, 8600, 8400 Series processors)- Supports PCIe 4.0 x4 (for Ryzen™ 8500, 8300 Series processors)Audio:- Realtek® ALC897- 7.1-Channel High Definition AudioStorage:- 3 x M.2 Slots (Quantity)- M.2_1 (Source: CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices- M.2_2 (Source: Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices- M.2_3 Source (from Chipset): supports up to PCIe 4.0 x4 and supports 4x SATA 6G Ports (Quantity)- M2_1 Slot- Supports up to PCIe 5.0 x4 (for Ryzen™ 9000 and 7000 Series processors)- Supports up to PCIe 4.0 x4 (for Ryzen™ 8000 Series processors)RAID:- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for NVMe M.2 storage devicesUSB:- 4 x USB 2.0 Ports (Rear)- 6 x USB 2.0 Ports (Front)- 2 x USB 5Gbps Type-A Ports (Rear)- 4 x USB 5Gbps Type-A Ports (Front)- 2 x USB 10Gbps Type-A Ports (Rear)- 1 x USB 10Gbps Type-C Port (Front)- 1 x USB 20Gbps Type-C Port (Rear)- 1 x USB 40Gbps Type-C Port (Rear)LAN:- Realtek® 8126VB 5G LANInternal I/O Connectors:- 1 x ATX_PWR Power Connector- 2 x CPU_PWR Power Connector- 1x8PIN Pcie_Pwr Connector- 1 x CPU_FAN Connector- 1 x Pump_SYS Fan Connector- 6 x System Fan Connectors- 1 x ARGB+FAN Connector (Jaf_1)- 2 x Front Panel Connectors (JFP)- 1 x Chassis Intrusion Connector (JCI)- 1 x Front Audio Connector (JAUD)- 1 x Tuning Controller Connector (JDASH)- 3 x Addressable RGB LED connectors V2 (JRGB_V2)- 1 x RGB LED Connector (JRGB)- 1 x TPM Connector (Supports TPM 2.0)- 6 x USB 2.0 Ports- 4 x USB Type-A 5Gbps Ports- 1 x USB Type-C 10Gbps PortWireless LAN & Bluetooth:- Wi-Fi 7- The wireless module is pre-installed in the M.2 (Key-E) slot- Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps- Supports 802.11 a/b/g/c/ax/be- Supports Bluetooth® 5.4, MLO, and 4KQAMLED Feature:- 4 x EZ Debug LED- 1 x EZ Memory Detect LEDRear Panel Ports:- Clear CMOS Button- USB Type-A to 5Gbps- USB Type-A to 10Gbps- USB 2.0- 5G LAN- Wi-Fi / Bluetooth- Audio Connectors- BIOS Flashback Button- HDMI™- USB Type-C to 40Gbps- USB 2.0- USB Type-C to 20Gbps- USB Type-A to 5GbpsOperating System:- Supports 64-bit Windows® 11Motherboard Information:- ATX 243.84mm x 304.8mm- Ewepeas Unim- 2 x SATA Cables- 12 x M.2 Cup 11 Never- EZ WI-FI- 1122 Cann-Cable (V1). tradeinn Techinn

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG X870E GAMING PLUS MAX WIFI employs a 14 Duet Rail Power Phase with 60A SPS for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A) DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, up to 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot, 2 x M.2 Gen4 x4 64Gbps slots with EZ M.2 Shield Frozr II to prevent thermal throttling ULTRA CONNECT - Network hardware includes Full-Speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1-HD Audio with Audio Boost
