Matlock Bolt Clamp/GBS Clamp 79MM 85MM Heavy Duty W2 Stainless Steel

ManoMano

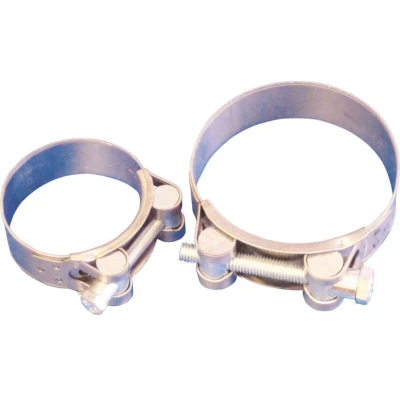

Matlock: Bolt Clamp/GBS Clamp 79MM - 85MM Heavy Duty W2 Stainless Steel Heavy duty bolt clamps to DIN 3017 are specifically designed to give extremely high band tension for sealing pressure/suction lines with either steel or plastic reinforcement and high shore hardness. Reinforced loops withstand significantly higher torques and the mechanically locked closure has no welding points and therefore no contact corrosion. Bridge gives optimal hose protection and the robust band with rounded edges for protection against injuries and/or damage to the hose surface. W2 material. Band grade 430 stainless steel. Housing/bolt 8.8 grade BZP. MPN: M780800-085 EAN: 5036140322929 Bolt Clamp/GBS Clamp 79MM - 85MM Heavy Duty W2 Stainless Steel Attributes: Band Thickness: 1.5mm Band Width: 20mm Capacity: 80 - 85mm Fastening Method: Bolt Head Size 10mm Material: Stainless Steel (304) A2 Max Pressure Bars: 36bar Pack Quantity: 5 Standards Met: DIN 3017 Surface Treatment: Plain Torque Range: 13 - 36nm

Zoro Tools

Heavy duty bolt clamps to DIN 3017 are specifically designed to give extremely high band tension for sealing pressure/suction lines with either steel or plastic reinforcement and high shore hardness. Reinforced loops withstand significantly higher torques and the mechanically locked closure has no welding points and therefore no contact corrosion. Bridge gives optimal hose protection and the robust band with rounded edges for protection against injuries and/or damage to the hose surface. W2 material. Band grade 430 stainless steel. Housing/bolt 8.8 grade BZP.
