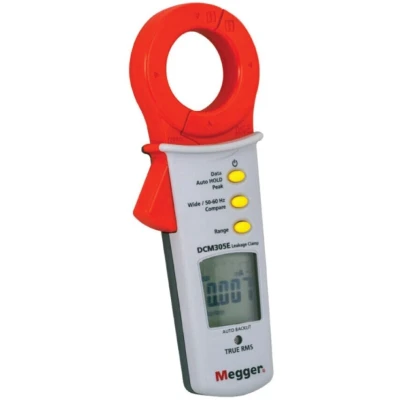

Megger DCM3005E Digital Earth Leakage Clamp Meter
Description
Zoro Tools
The DCM305E has a 4000 count backlit digital display with true-RMS readings on all six AC ranges; the ranges being 6 mA, 60 mA, 600 mA, 6 A, 60 A and 100 A. The meter has a resolution of 0.001 mA (6mA range).
The user selectable 50/60Hz low pass filter offers accurate measurements in circuits with relatively high harmonics.
A compare option offers preset values of 0.25 mA, 0.5 mA and 3.5 mA with a visual / audible indication when the measured leakage current exceeds these values.
Automatic / Manual ranging.
Data / Peak Hold.
Auto power-off (20 min; user-selectable).
Compare feature.
Low pass filter.
Analogue bargraph display for trending.
Due to the design of the 40 mm jaw the DCM305E allows current measurements on un-insulated conductors and busbars though personal protection against shock should still be maintained.
Description
(2)
The DCM305E has a 4000 count backlit digital display with true-RMS readings on all six AC ranges; the ranges being 6 mA, 60 mA, 600 mA, 6 A, 60 A and 100 A. The meter has a resolution of 0.001 mA (6mA range). The user selectable 50/60Hz low pass filter offers accurate measurements in circuits with relatively high harmonics. A compare option offers preset values of 0.25 mA, 0.5 mA and 3.5 mA with a visual / audible indication when the measured leakage current exceeds these values. Automatic / Manual ranging. Data / Peak Hold. Auto power-off (20 min; user-selectable). Compare feature. Low pass filter. Analogue bargraph display for trending. Due to the design of the 40 mm jaw the DCM305E allows current measurements on un-insulated conductors and busbars though personal protection against shock should still be maintained.
AmazonMegger DCM305E Current Clamp Digital CAT III 300V Contents: 1 item, Weight: 0.661386786 Pounds, Manufacturer: Megger
