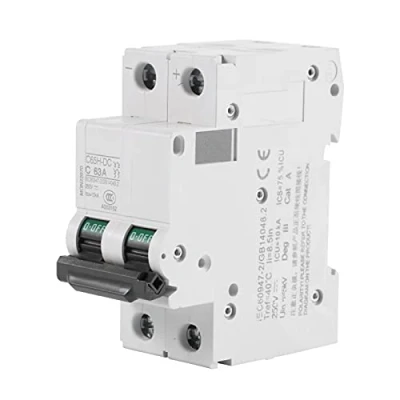

Miniature Circuit Breaker, 1pc 250V DC 2P Low Voltage Air Breaker Solar Energy Switch 16A/32A/63A for Panels Grid System(63A)

NECESSARY PARAMETERS: Model: C65H-DC 2P,, rated current: 16A/32A/63A (optional), rated voltage: DC250V, ultimate breaking capacity (ICU): 10kA, stroke characteristics: B, C, rated impulse withstand voltage (Uimp): 5kV. FUNCTION: Circuit breakers are used to protect DC circuits from overload and short circuit damage, and can also be used for control and isolation. EASY INSTALLATION: Modular structure, the miniature circuit breaker can be easily installed on the DIN standard rail in the distribution box (DIN rail is not included). OPERATION: The miniature circuit breaker is quickly closed to ensure the operation of the load and prolong the life of the electrical circuit breaker. WIDELY APPLICABLE: circuit breakers are widely used in solar panel grid-connected systems, wind-solar hybrid systems and many other DC systems.
