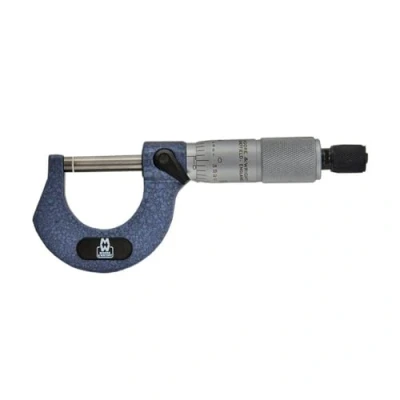

General description The Moore & Wright MAW1965 Traditional External Micrometer is designed for precise measurements of external dimensions. It features a durable blue textured frame with tungsten carbide measuring faces and a tapered bow frame for comfortable handling. The micrometer is equipped with a speeder type ratchet locking lever and an adjusting key for ease of use, making it suitable for both professional and DIY applications requiring high accuracy. Technical specifications Measuring range: 0-1 inch Resolution: 0.001 inch Accuracy: ±0.0001 inch Measuring faces: Tungsten carbide Flatness: 0.00005 inch Parallelism: 0.0001 inch Spindle diameter: 6.5 mm Standards: BS870, DIN 863/1, ISO 361 Compatibility and accessories Supplied with a plastic pocket case for protection and portability. Installation No special installation required; simply calibrate and adjust the micrometer before use. Usage Use the spindle to measure external dimensions by opening and closing the micrometer
