Moore & Wright Reversible Base Depth Gauge Metric/Imperial 0 6in MAW43

ManoMano

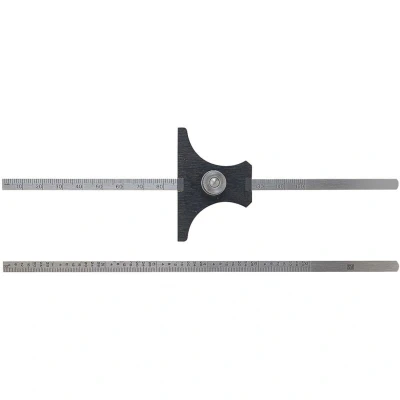

General description This reversible base depth gauge is designed for precise measurement of depths in confined spaces. It features accurately ground top and bottom faces, allowing the base to be reversed easily. The gauge includes a full range of adjustable rules that can be fixed in place with a locknut, ensuring accurate readings. The scale is graduated on both sides for versatile use. Technical specifications Size of base: 18/56mm (0.71/2.21 inches) Width: 5.5mm (0.22 inches) Thickness: 1.0mm (0.04 inches) Blade length: 195mm (7.68 inches) Graduations: Front face in 1/32nd inches, rear face in 1.0mm Compatibility and accessories Suitable for use with standard depth measurement applications in various industries Compatible with other measuring tools that accept similar scales Installation No special installation required; simply adjust the rule to the desired measurement and lock in place with the locknut. Usage Use the gauge to measure depths in tight or confined spaces Adjust the

Power Tools Direct

The Moore & Wright Reversible Base Depth Gauges have accurately ground top and bottom faces to allow the base to be reversed perfect for use in confined spaces. There is a full range rule adjustment and the readings can be fixed by means of a locknut. Rules are graduated on both sides.The Moore & Wright 43 Reversible Base Depth Gauge has the following specification: Size of Base: 18/56mm 0.71/2.21in.Width: 5.5mm/0.22in.Thickness: 1.0mm/0.04in.Length of Blade: 195mm/7.68in. Metric/Imperial Scale Graduations : Front Face: 1/32nd Rear Face: 1.0mm.PTDMAW43

Amazon

Reversible Base Depth Gauge Metric/Imperial Reversible Base Depth Gauge Metric/Imperial Reversible Base Depth Gauge Metric/Imperial
