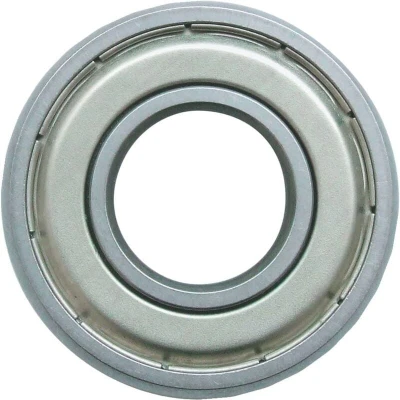

NTN SNR 6005 ZZC3 J30 Deep Groove Ball Bearing

ManoMano

NTN SNR: 6005-ZZC3-J30 Deep Goove Ball Beaing C3 bearings have an additional internal radial clearance to cope with high speed environments where excess heat is generated. Shielded Type: With metal shields inserted into the outer raceway, these fit in closely to the inner race providing moderate protection against mechanical damage, and against the ingress of moisture, dust and other foreign objects. The shields also retain the pre-filled grease in the bearing. Shields can be easily removed for applications that only require one shield. MPN: 6005ZZC3 EAN: 3413520110406 6005-ZZC3-J30 Deep Goove Ball Beaing Attributes: Dynamic Load Rating: 10.1kN Inside Diameter: 25mm Limiting Speed: 15000rpm MFR Part No.: 6005ZZC3 Operating Temperature Range: -40 to 120°C Outside Diameter: 47mm Product Type: Shielded Type Radial Internal Clearance: C3 Static Load Rating: 5.85kN Width: 12mm

Zoro Tools

C3 bearings have an additional internal radial clearance to cope with high speed environments where excess heat is generated. Shielded Type: With metal shields inserted into the outer raceway, these fit in closely to the inner race providing moderate protection against mechanical damage, and against the ingress of moisture, dust and other foreign objects. The shields also retain the pre-filled grease in the bearing. Shields can be easily removed for applications that only require one shield.
