NTN SNR 6206 ZZ C3 Deep Groove Bearing

ManoMano

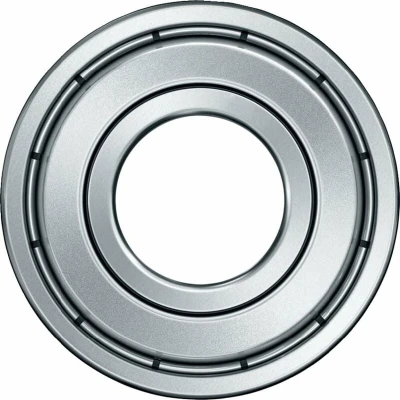

NTN SNR: 6206-ZZ-C3 Deep Goove Beaing Shielded Type With metal shields inserted into the outer raceway, these fit in closely to the inner race providing moderate protection against mechanical damage, and against the ingress of moisture, dust and other foreign objects. The shields also retain the pre-filled grease in the bearing. Shields can be easily removed for applications that only require one shield. C3 Bearings have an internal clearance to cope with high speed environments where excess heat is generated. MPN: 6206ZZC3/5K EAN: 4547359010770 6206-ZZ-C3 Deep Goove Beaing Attributes: Dynamic Load Rating: 19.5kN Inside Diameter: 30mm Limiting Speed: 11000rpm Operating Temperature Range: -40 to 120°C Outside Diameter: 62mm Product Type: Shielded Type Radial Internal Clearance: C3 Static Load Rating: 11.3kN Width: 16mm

Zoro Tools

Shielded Type With metal shields inserted into the outer raceway, these fit in closely to the inner race providing moderate protection against mechanical damage, and against the ingress of moisture, dust and other foreign objects. The shields also retain the pre-filled grease in the bearing. Shields can be easily removed for applications that only require one shield. C3 Bearings have an internal clearance to cope with high speed environments where excess heat is generated.
