Nuasol Bracket for solar panel elevation up to 118 cm flat roof pv module

ManoMano

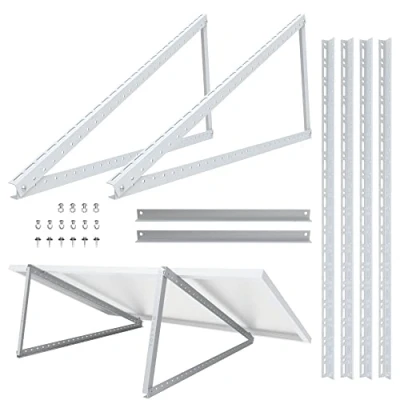

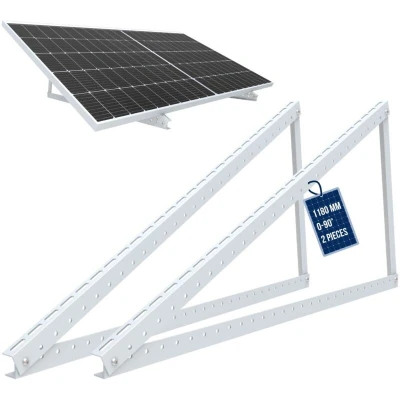

General description NuaFix offers a versatile solution for mounting solar panels with its triangular brackets designed for flat roof installations. These adjustable brackets allow for a tilt angle ranging from 0 to 90 degrees, ensuring optimal solar energy capture. Made from durable AL6005-T5 aluminum and equipped with SUS304 stainless steel bolts and nuts, these brackets are built to withstand various weather conditions while providing a reliable support system for your solar modules. Technical specifications Dimensions long strut (WxDxH): 28 x 42 x 3 mm Length long strut: 1180 mm Length cross brace: 525 mm Dimensions cross strut (WxDxH): 28 x 32 x 3 mm Max. solar module width: 1180 mm Material thickness: 3 mm Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm Material bracket: Aluminium AL6005-T5 Material bolts & nuts: Stainless steel SUS304 Angle: 0-90° Weight: 2.89 kg Compatibility and accessories Suitable for flat surfaces such as garages, gardens, and balconies Scope of

Amazon

Suitable for: flat substrates Heat & pressure resistant, weatherproof Material: Aluminium AL6005-T5 | Stainless steel SUS304 Adjustable brackets for PV modules up to 1180mm Easy mounting | Tilt angle 0-90, Weight: 6.3713593718 pounds, Manufacturer: Canbolat Vertriebs GmbH
