Nuasol Bracket for solar panel elevation up to 105 cm flat roof pv module

ManoMano

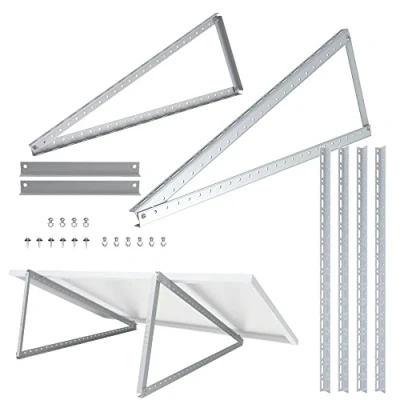

General description NuaFix offers a versatile solution for mounting solar panels with its triangular brackets designed for flat roofs. These adjustable brackets allow for a tilt angle between 0-90°, ensuring optimal solar energy capture. Made from durable materials, they are suitable for various installations, including garages, gardens, and balconies. Technical specifications Dimensions long strut (WxDxH): 28 x 42 x 3 mm Length long strut: 1050 mm Length cross brace: 365 mm Dimensions cross strut (WxDxH): 28 x 32 x 3 mm Max. solar module width: 1050 mm Material thickness: 3 mm Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm Material bracket: Aluminium AL6005-T5 Material bolts & nuts: Stainless steel SUS304 Angle: 0-90° Weight: 2.49 kg Compatibility and accessories Scope of delivery: 8x long struts, 4x short struts, 2x screw set Installation The NuaFix brackets are designed for easy attachment to solar panels, allowing for quick installation on flat surfaces. Usage These

Amazon

Suitable for flat surfaces Heat and pressure resistant, weather-resistant Material: aluminium AL6005-T5, stainless steel SUS304 Adjustable brackets for PV modules up to 1050 mm Easy to install - tilt angle 0-90°., Weight: 5.51155655 pounds, Manufacturer: Canbolat Vertriebsgesellschaft GmbH
