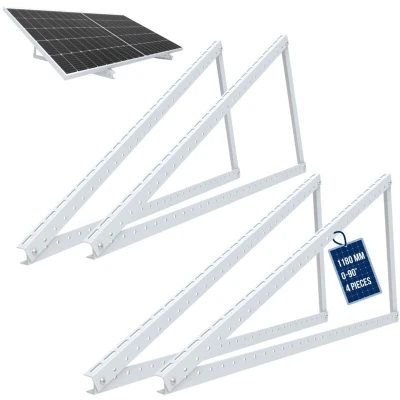

NuaSol PV 4 x Solar Panel Bracket 48 Inches / 118 cm Module Balcony Power Station Aluminium Stand Flat Roof Adjustable 0 90 for 2 Panels Including Mounting

ManoMano

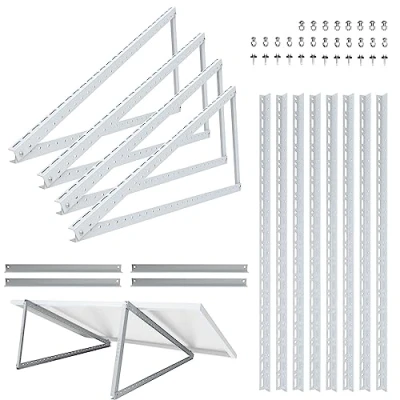

General description The NuaSol Bracket for solar panel elevation is designed for flat roof PV solar modules, providing adjustable support for optimal solar energy capture. These triangular brackets allow for a tilt angle adjustment between 0° and 90°, making them versatile for various installations such as garages, gardens, and balconies. Technical specifications Dimensions long strut (WxDxH): 28 x 42 x 3 mm Length long strut: 1180 mm Length cross brace: 525 mm Dimensions cross strut (WxDxH): 28 x 32 x 3 mm Max. solar module width: 1180 mm Material thickness: 3 mm Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm Weight: 2.89 kg Material bracket: Aluminium AL6005-T5 Material bolts & nuts: Stainless steel SUS304 Angle: 0-90° Compatibility and accessories Scope of delivery: 8x long struts, 4x short struts, 2x screw set Installation The NuaSol brackets are easy to attach to solar panels, ensuring a quick setup for your solar system. Usage These adjustable brackets are suitable

Amazon

Weather-resistant: Our weather-resistant, adjustable PV system brackets made of AL6005-T5 aluminium are easy to attach to the solar panel, so your solar system is ready to use in no time Everything in it: screws and nuts made of SUS304 stainless steel are already included. Our adjustable brackets are suitable for constructions on flat surfaces such as garages, gardens, balconies, etc. Easy to install: Convenient adjustment of the tilt angle to harvest the maximum yield. [Details] Dimensions of long strut (W x D x H): 28 x 42 x 3 mm. Length long strut: 1180 mm. Length cross brace: 525 mm. Dimensions cross brace (W x D x H): 28 x 32 x 3 mm. Max. Solar panel width: 1180 mm. Material thickness: 3 mm Box contents: 8 x long struts, 4 x short struts, 2 x screw set, Weight: 6.3713593718 Pounds, Manufacturer: Canbolat Vertriebsgesellschaft mbH
