NuaSol Photovoltaic Solar Panel Bracket 2 Mounting Set I 35 mm End Clamps

ManoMano

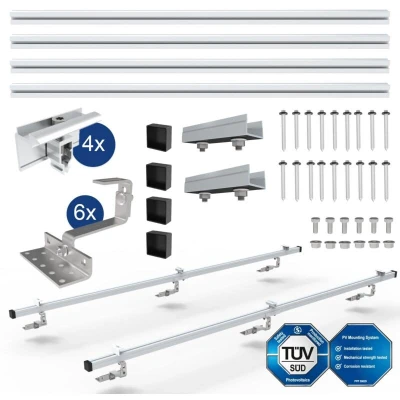

General description The NuaSol Photovoltaic Solar Panel Bracket 2 Mounting Set is a comprehensive roof mounting kit designed for the installation of two solar modules. This DIY solution includes all necessary components to securely mount solar panels on your roof, ensuring a reliable and efficient setup for your mini PV system or balcony power plant. Technical specifications Dimensions of single profile: 1230 x 40 x 40 mm Total length: 2460 mm Dimensions of connection: 120 x 45.5 x 25 mm Dimensions middle clamp: 70 x 39.4 x 22.4 mm Dimensions end clamp: 70 x 34 x 28.6 mm Dimensions end cap: 43 x 20 x 43 mm Material of roof hooks: Stainless steel (SUS 304) Flat steel hook dimensions: 60 x 30 x 5 mm Length of hook inside: 115 mm Base plate dimensions: 140 x 54 x 5 mm Max. snow load: approx. 140 kg Max. wind speed: 60 m/s Weight of roof hook: 0.76 kg Aluminium profile material: AL5005-T5 Width compatibility for solar panels: Up to 1150 mm Installation The installation process is

Amazon

[Application] Suitable for brick roofs. Install 2 solar panels [Roof Mounting] Attach your aluminium profile to your roof with the roof hooks and included wood screws directly under the bricks. [Installation of the solar panels] The solar panel is attached to the aluminium profile by means of end brackets and centre brackets. [Details] Profile dimensions: 1230 x 40 x 40 mm | Connection dimensions: 120 x 45.5 x 25 mm | End clip dimensions: 70 x 34 x 28.6 mm | End cap dimensions: 43 x 20 x 43 mm [Expansion Kit] Expand your one-module profile with the Nuasol expansion kit to add another module and save space on your roof., Manufacturer: Canbolat Vertriebsgesellschaft mbH
