NuaSol Photovoltaic Tile Roof Mounting Kit, Solar Panel Bracket with Hooks, End Clamp & Centre 35 mm

ManoMano

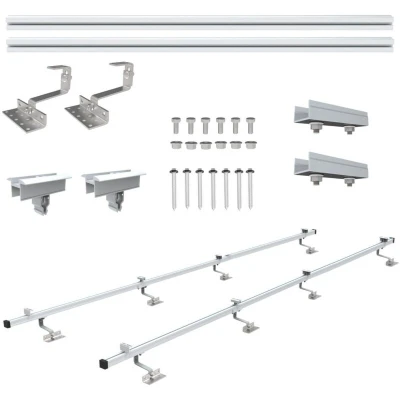

General description NuaSol offers a comprehensive roof mounting kit extension designed for one solar module, ideal for DIY enthusiasts looking to install a mini PV system or balcony power plant. This set includes all necessary components for securely mounting solar modules on tiled roofs, ensuring a reliable and efficient installation. Technical specifications Dimensions of single profile: 1230 x 40 x 40 mm Total length: 1230 mm Dimensions of connection: 120 x 45.5 x 25 mm Dimensions of middle clamp: 70 x 39.4 x 22.4 mm Material of roof hooks: Stainless steel (SUS 304) Flat steel hook dimensions: 60 x 30 x 5 mm Length of hook inside: 115 mm Dimensions of base plate: 140 x 54 x 5 mm Mounting holes: 9 x 9 mm offset Height adjustment of base plate: 44-47 mm Height adjustability of flat steel hook: 60-92 mm Slotted hole measurement: 45 x 11 mm Total height adjustment: 120-160 mm Overall dimensions: 174 x 140 x 120-160 mm Max. snow load: approx. 140 kg Wind speed: max. 60 m/s Weight per

Amazon

Preparation 1: Connect aluminium profiles 2: Attach roof hooks below the profile 3: Insert centre clamp above to centre 4: Attach end clips to ends 5: Put end caps Everything included! The roof mount kit extension allows you to expand your aluminium profile with another solar panel to save space. Easy installation 1: prepare profiles 2: lift roof tiles 3: screw roof hooks 4: attach solar panels 5: tighten centre and end brackets Details Dimensions of profile individual: 1230 x 40 x 40 mm Total length: 1230 mm Dimensions connection: 120 x 45.5 x 25 mm Dimensions centre clip: 70 x 39.4 x 22.4 mm ROOF HOOKS: Our weather-resistant, stainless steel Z brackets are fully pre-assembled. Our special roof hooks are suitable for the removal of aluminium rails, profile rails, mounting rails and for the mounting of photovoltaic modules or solar systems., Manufacturer: Canbolat Vertriebs GmbH
