Nuasol Photovoltaic Solar Panel Mount 1 Mounting Set Tile Roof Fastening

ManoMano

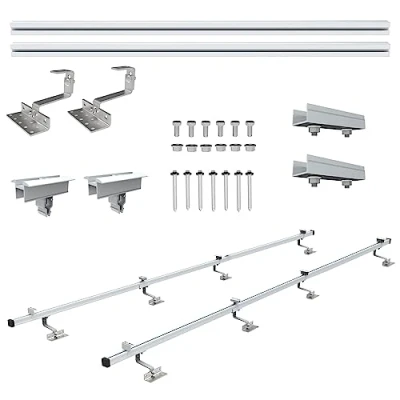

General description NuaSol offers a comprehensive roof mounting kit designed for solar modules, suitable for DIY enthusiasts looking to install a mini PV system or balcony power plant. This kit includes all necessary components for securely mounting solar panels on tile roofs, ensuring a reliable and efficient installation. Technical specifications Dimensions profile: 1230 x 40 x 40 mm Dimensions end clamp: 70 x 34 x 28.6 mm Dimensions end cap: 43 x 20 x 43 mm Material of roof hooks: Stainless steel (SUS 304) Flat steel hook dimensions: 60 x 30 x 5 mm Length of hook inside: 115 mm Dimensions base plate: 140 x 54 x 5 mm Mounting holes: 9 x 9 mm offset Height adjustment of base plate: 44-47 mm Height adjustability flat steel hook: 60-92 mm Slotted hole measurement: 45 x 11 mm Total height adjustment: 120-160 mm Overall dimensions: 174 x 140 x 120-160 mm Max. snow load: approx. 140 kg Wind speed: max. 60 m/s Weight per piece: 0.76 kg Aluminium profile material: AL5005-T5 Compatible solar

Amazon

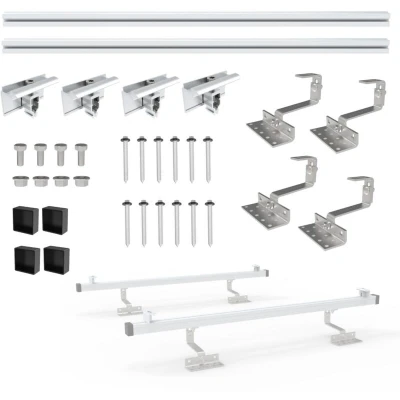

[Application] Suitable for brick roofs. Install a solar panel [Roof Mounting] Attach your aluminium profile to your roof with the roof hooks and included wood screws directly under the bricks. [Installation of the solar panels] The solar panel is attached to the aluminium profile by means of end brackets and centre brackets. [Details] Profile dimensions: 1230 x 40 x 40 mm | Connection dimensions: 120 x 45.5 x 25 mm | End clip dimensions: 70 x 34 x 28.6 mm | End cap dimensions: 43 x 20 x 43 mm [Expansion Kit] Expand your one-module profile with the Nuasol expansion kit to add another module and save space on your roof., Manufacturer: Canbolat Vertriebsgesellschaft mbH
