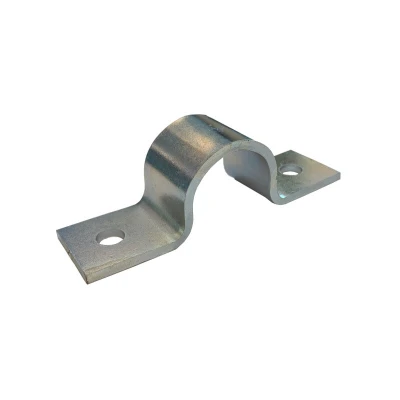

Pipe Saddle Clamp Guide 24 mm id, 23 ih, 25 x 3 Steel (zp) Zinc Plated

General description Pipe Saddle Clamp - Guide - 24 mm ID, 23 mm IH, 25 x 3 mm Steel (ZP) Zinc Plated is ideally suited for use with Unistrut / Oglaend steel channel trunking. It is designed to allow longitudinal movement, making it suitable for applications where vibration or thermal expansion is a concern. Technical specifications Inside Diameter (D): 24 mm Inside Height (C): 23 mm Hole Centers (A): 66 mm Material: Bright Zinc Plated Mild Steel Pipe Nominal Bore: 15 mm Pipe OD: 21.3 mm Material Thickness (T): 3 mm Material Width (W): 25 mm Hole Center to Edge (B): 12 mm Hole Diameter (E): 8 mm Manufacturing tolerances: +/- 1 mm Other information This product is best suited for indoor use, although it provides some protection against the elements. The steel features a 3-micron bright zinc plating for a shiny finish.
