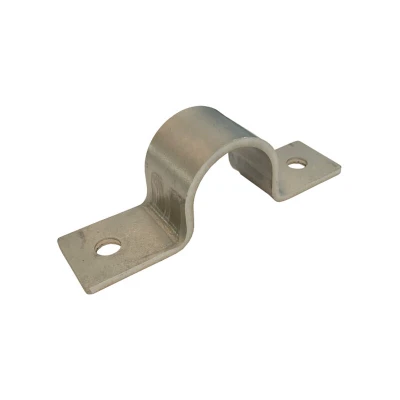

Pipe Saddle Clamp Guide 30 mm id, 29 ih, 25 x 3 Steel (zp) Zinc Plated

General description Pipe Saddle Clamp - Guide - 30 mm ID, 29 mm IH, 25 x 3 mm Steel (ZP) Zinc Plated is ideally suited for use with Unistrut / Oglaend steel channel trunking. It is designed to allow longitudinal movement, making it suitable for applications where vibration or thermal expansion is a concern. Technical specifications Inside Diameter (D): 30 mm Inside Height (C): 29 mm Hole Centers (A): 77 mm Material: Zinc Plated Mild Steel Pipe Nominal Bore: 20 Pipe OD: 26.9 mm Material Thickness (T): 3 mm Material Width (W): 25 mm Hole Center to Edge (B): 12 mm Hole Diameter (E): 8 mm Plating: 3 micron Bright Zinc Plated Mild Steel Manufacturing tolerances: +/- 1 mm Usage This product is best suited for indoor use, although it provides some protection against environmental factors.
