Plasma Cutter 65 a 400 v pilot arc Metal cutting machine

ManoMano

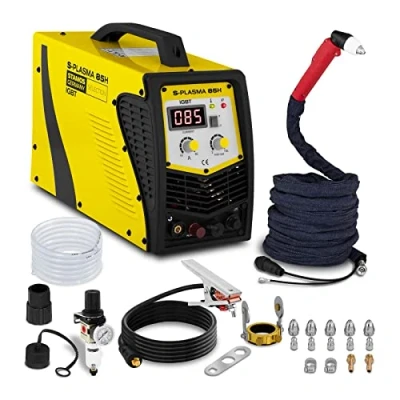

⭐⭐⭐⭐⭐ Plasma Cutter - 85 A - 400 V - Pilot arc by Stamos Selection ✅ Model: S-PLASMA 85H / SPAWARKA ✅ Item: 10020044 ⬇️ Key features Excellent performance values—85 amps at 60 percent duty cycle Separate working modes for short-term and continuous operation, powerful cooling of the power unit, the torch and the workpiece Pilot plasma arc ignition Cutting depth of up to 27 millimetres Easy-to-read LED display ⬇️ Technical details Air flow [l/min] 175 Duty cycle for 40°C [%] 60 Input power [kVA] 8.6 Power factor 0.93 Cutting width [mm] 1.2 Gas after-flow [s] 2 - 15 Max. input power [kVA] 13.2 Insulation class F Max. input current [A] 18.6 Rated Input current [A] 13.2 CNC No 2T / 4T Yes Power cord 3.8 m Manual Yes Frequency [Hz] 50 Soft start Yes Water cooling No Plasma cable 5 m Gas test function Yes Air pressure 5.5 Bar Ground cable 4 m Air pressure hose length [m] 4 Ignition Plasma Pilot ARC Max cutting thickness 27 mm Efficiency [%] ≥ 0,85 Voltage [V] 400 Constant pressure [bar] 5.5

Amazon

Excellent performance values—85 amps at 60 percent duty cycle Separate working modes for short-term and continuous operation, powerful cooling of the power unit, the torch and the workpiece Pilot plasma arc ignition Cutting depth of up to 27 millimetres Easy-to-read LED display
