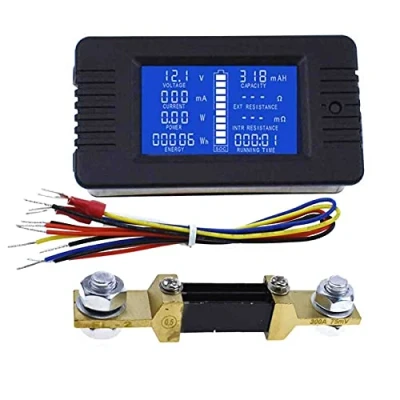

PZEM 015 Battery Tester,Multifunctional Meter Current Voltage,Power Energy Capacity Impedance Tester (with 300A Shunt)

The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement. High-precision chip control, good electronics, safe and reliable soldering process.Power Consumption:Normal Working Status: 0.03-1.2W;Sleep State: 0.5mW-0.5W.The power consumption is related to the value of the test voltage. The higher the voltage, the greater the power consumption. The shell is made of high-strength material, which is elastic and not easy to break.Working Temperature: -20 ° C - + 60 ° C. Remaining Battery:Display: The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.The remaining battery capacity is calculated by the current battery voltage value. Before the test, the full power voltage and cut-off voltage should be preset according to the specifications of the battery used; the voltage per cell = (highest voltage - minimum voltage) / 10. 9 sets of measurement parameters can be displayed simultaneously, and various parameters are clearly visible.
