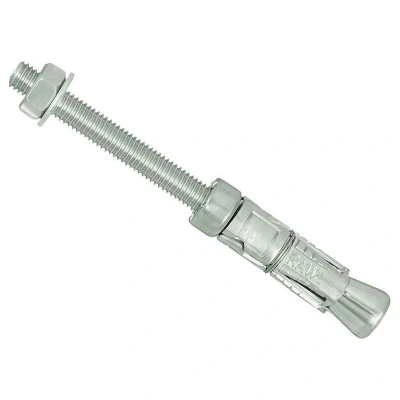

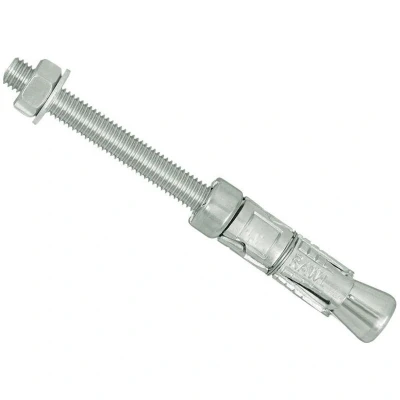

Rawlplug Rawlbolt Projecting Bolt M10/60P (Bag 5)

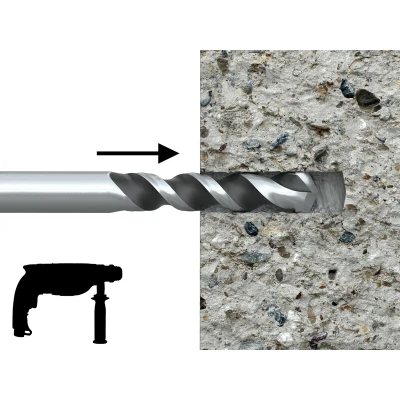

General description The Rawlplug Rawlbolt Projecting Bolt M10/60P is designed for secure fastening in various substrates, including cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. This versatile bolt is ideal for applications requiring fire resistance and features a three-piece expanding sleeve that maximizes expansion for optimal load capacity and safety. Technical specifications Size: M10 Maximum fixture thickness: 60mm Overall length: 135mm Drill diameter: 11mm Pack quantity: Bag of 5 MPN: R-S1-RBP-M10/60/5 EAN: 5906675094519 Compatibility and accessories Compatible with concrete, hollowcore slabs, flooring blocks, and ceramics Designed for fire-resistant applications Installation Drill a hole of 11mm diameter to a depth suitable for the bolt length Insert the bolt into the hole Ensure the expanding sleeve is fully engaged for maximum load capacity Usage Ideal for securing fixtures in concrete and similar substrates Suitable for both cracked and

The Rawlplug Rawlbolt® Projecting Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1) hollowcore slabs flooring blocks and ceramics. Recommended for applications requiring fire resistance. With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate. The world's most popular all-purpose expanding shield anchor loose bolt projecting version.These Rawlplug Rawlbolt® Projecting Bolts have the following specification: Size x Max. Fixture Thickness: M10 x 60mmOverall Length: 135mmDrill Ø: 11mmPack Quantity: Bag of 5PTDRAWM1060PB
