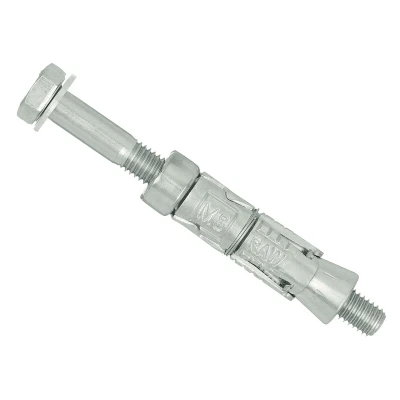

Rawlplug Rawlbolt Loose Bolt M10/25L Bag 5 RAWM1025LB

The Rawlplug Rawlbolt® Loose Bolt M10/25L is a versatile expanding shield anchor designed for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. It features a three-piece expanding sleeve to maximize expansion for load-bearing performance and safety across substrates, and is recommended for fire-resistant applications. The M10 version has an anchor diameter of 10 mm, an external diameter of 16 mm, and a total length of 90 mm, accommodating a maximum fixture thickness of 25 mm. Installation requires an 11 mm hole that expands to 16 mm in the substrate, with a torque of 27 Nm using a 17 mm wrench. Minimum hole depth is 65 mm, installation depth 60 mm, and minimum substrate thickness 100 mm. For multi-anchor use, maintain a minimum spacing of 50 mm and a minimum edge distance of 75 mm. Packaged as a bag of 5, it offers reliable performance for various construction materials from a global leader.

Specifications

• Anchor diameter 10 mm
• External diameter 16 mm
• Length 90 mm
• Max fixture thickness 25 mm
• Hole diameter 11 mm; substrate 16 mm
• Installation torque 27 Nm; wrench 17 mm

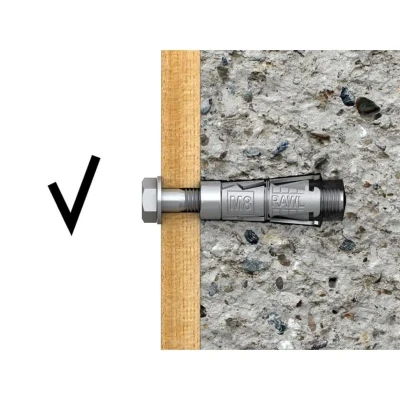

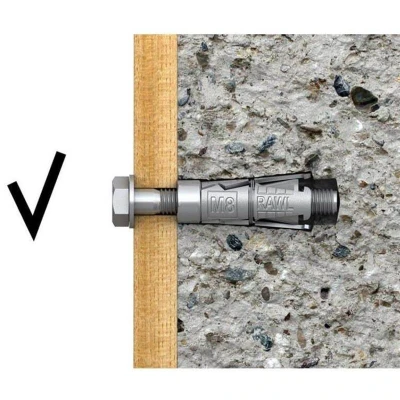

Installation notes

Minimum hole depth: 65 mm; installation depth: 60 mm; minimum substrate thickness: 100 mm. For safe and effective multi-anchor use, maintain a minimum spacing of 50 mm and a minimum edge distance of 75 mm. Pack quantity: bag of 5. Compatible with cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics; suitable for fire-resistant applications.

For safe and effective multi-anchor use, maintain a minimum spacing of 50 mm and a minimum edge distance of 75 mm.
