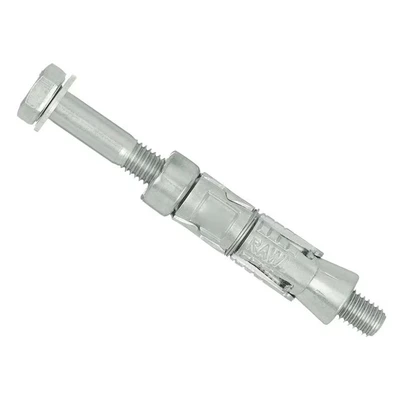

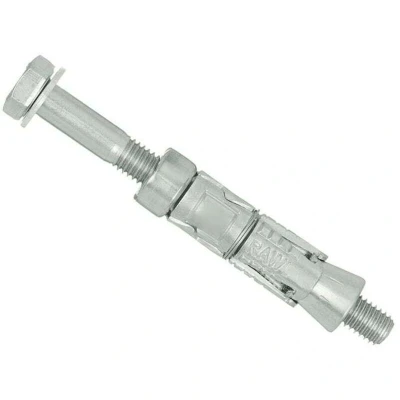

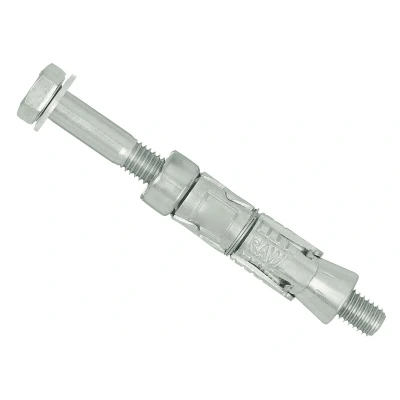

Rawlplug Rawlbolt Loose Bolt M6/10L (Bag 5) RAWM610LB
Featured
|
£ 4.60 |
To Shop
|
|
£ 10.85 |
To Shop
|
Description
Joybuy
Achieve a superior and secure hold with the RAWLPLUG Rawlbolt® Loose Bolt M6/10L. Designed for demanding applications, this anchor is suitable for use in both cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks, and ceramics. It is the world's most popular all-purpose expanding shield anchor, recommended for projects requiring fire resistance. Its unique three-piece expanding sleeve provides maximum expansion for optimal load distribution and ultimate safety in any substrate.For the M6/10L model, the anchor diameter is 6mm, expanding to a 12mm external diameter with a 55mm length. Install using a 10mm wrench to an installation torque of 6.5Nm into a 6.5mm drilled hole. The fixture maximum thickness is 10mm. Ensure a minimum substrate thickness of 100mm, a minimum hole depth of 50mm, and adhere to the minimum spacing of 35mm and edge distance of 53mm for a safe and reliable installation. Sold in a convenient bag of 5, these anchors are part of Rawlplug's trusted range of professional-grade fastening solutions, engineered for performance and reliability.
Description
(2)
Achieve a superior and secure hold with the RAWLPLUG Rawlbolt® Loose Bolt M6/10L. Designed for demanding applications, this anchor is suitable for use in both cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks, and ceramics. It is the world's most popular all-purpose expanding shield anchor, recommended for projects requiring fire resistance. Its unique three-piece expanding sleeve provides maximum expansion for optimal load distribution and ultimate safety in any substrate.For the M6/10L model, the anchor diameter is 6mm, expanding to a 12mm external diameter with a 55mm length. Install using a 10mm wrench to an installation torque of 6.5Nm into a 6.5mm drilled hole. The fixture maximum thickness is 10mm. Ensure a minimum substrate thickness of 100mm, a minimum hole depth of 50mm, and adhere to the minimum spacing of 35mm and edge distance of 53mm for a safe and reliable installation. Sold in a convenient bag of 5, these anchors are part of Rawlplug's trusted range of professional-grade fastening solutions, engineered for performance and reliability.
ManoManoGeneral description The Rawlplug Rawlbolt Loose Bolt M6/10L is a versatile anchor designed for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. It features a three-piece expanding sleeve that maximizes expansion for optimal load capacity and safety in various substrates. This product is the loose bolt version of the world's most popular all-purpose expanding shield anchor, making it suitable for applications requiring fire resistance. Technical specifications Anchor Diameter: 6mm External Diameter: 12mm Length: 55mm Fixture Max. Thickness: 10mm Hole Diameter: 6.5mm Hole Diameter in Substrate: 12mm Installation Torque: 6.5 Nm Wrench Size: 10 Minimum Hole Depth in Substrate: 50mm Minimum Installation Depth: 45mm Minimum Substrate Thickness: 100mm Minimum Spacing: 35mm Minimum Edge Distance: 53mm Pack Quantity: Bag of 5 Installation Drill a hole of 6.5mm diameter to a minimum depth of 50mm in the substrate. Insert the bolt into the hole and
