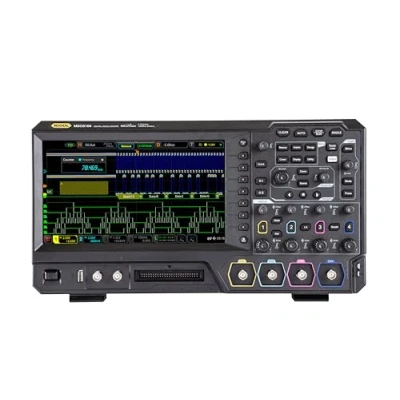

RIGOL MSO5104 Mixed signal Oscilloscope,100MHz,100Mpts,8GSa/s,4 analog channels,16 digital channels,Optional generator function

【Specifications】MSO5104 digital oscilloscope bandwidth of 100MHz, sampling rate of 8G Sa / s, storage depth of 200Mpts, 4-channel oscilloscope, time base range of 5 ns / div ~ 1 ks / div, vertical gear 500 μV / div ~ 10 V / div, waveform capture rate of 500,000 wfms / s, 9-inch colour touch screen, the machine size is 367 mm (W) × 200 mm (H) × 130 mm (D), weight 3.5Kg, is a multi-functional integrated mixed-signal oscilloscope. 【Rich Functions】This oscilloscope combines 7 separate instruments in one, including an oscilloscope, a 16-channel logic analyser, a spectrum analyser, an arbitrary waveform generator, a digital voltmeter, a high-precision frequency meter and totalizer, and a protocol analyser. Support RS232/UART, I2C, SPI, CAN, FlexRay, I2S, MIL-STD1553 decoding and other functions, support for cursor measurements, automatic measurements and FFT and other mathematical operations, support for waveform recording and playback, with a voltage and current probe, you can measure the voltage and current. 【Built-in Signal Source】This oscilloscope supports the optional 25MHz dual-channel waveform generator, which can not only output standard function/waveform signals, but also can be used to do Bode plot analysis. 【Programming and communication】This oscilloscope is equipped with USB Device&Host, LAN, USB-GPIB, TRIG OUT, HDMI interface, support for web remote control and screen casting demonstration; This oscilloscope supports secondary development, compatible with SCPI specifications, support for Labview, visual basic, visual c++ programming. 【Certification and Warranty】RIGOL digital oscilloscopes have passed CE certification, safe and reliable. We provide 36 months warranty service. If you have any questions about our digital oscilloscopes, please feel free to contact us, we will reply within 24 hours.
