Rings Kit Eurorack Oscillator Module by Sound Study Modular

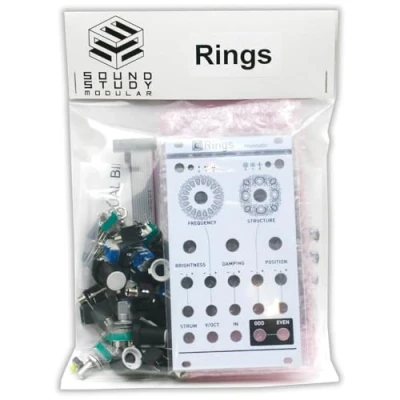

This is a "finish-it-yourself" kit. The surface mount parts are all pre-soldered, and the firmware is already installed. The panel and all other parts (including the Rogan knobs) for the circuit are included. You can swap our panel for another manufacturer's panel too! This kit requires assembly. You can find assembly instructions at the Sound Study Modular website. Rings is a resonator, the essential ingredient at the heart of several physical modeling synthesis techniques. The resonator transforms an external, unpitched excitation audio signal into a full-bodied pitched sound. Any signal can be fed into the resonator, including envelope clicks, trigger signals, noise bursts, even tonal sounds. Three families of vibrating structures are simulated by the module, with CV control over their parameters. Pseudo-polyphony of up to 4 notes. Each new note is played on its own virtual string, while the previously played note(s) still decay. Specifications: Module width: 14HP; Module depth: 25mm; Current draw: 120mA @ +12V, 5mA @ -12V
