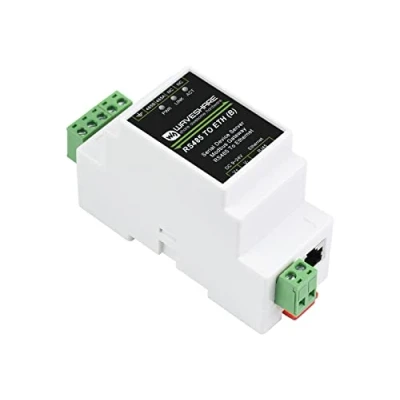

RS485 to RJ45 Ethernet Converter Industrial Serial Device Server TCP/IP Module Supports Modbus Gateway, MQTT/JSON and Multi Communication Modes, Rail Mount Support

【Industrial Serial Server】RS485 to RJ45 Ethernet Module for bi-directional transparent data transmission between RS485 and Ethernet, with rail-mount flame-retardant case design, supports 9~24V wide range power supply 【Modbus Gateway Support】Suitable for Modbus gridding upgrade, can be used with 3D configuration software, Support MQTT/JSON to Modbus, more flexible conversion between different protocols 【Multi Communication Modes Support】Supports TCP server / TCP client / UDP mode / UDP multicast 【Multi Hosts Roll-polling Support】Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices. User-defined heartbeat/registration packet, easy for cloud communication and device identification, support NTP protocol, getting network time info for serial output or data upload, support multi configuration methods 【Technical Support】Development Resources and Technical Support are provided, please feel free to contact us if you have any problem when using the RS485 TO ETH (B)
