Safety Pin Bow Shackles X2 2 Ton Galvanised 16MM 2000KG Omega

ManoMano

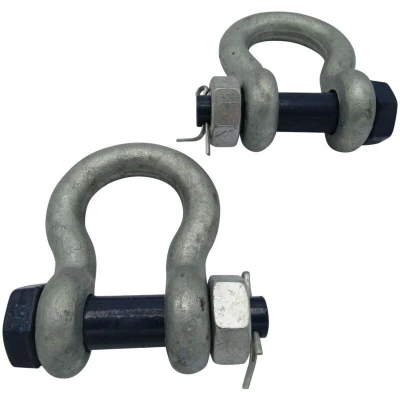

General description Safety Pin Bow Shackles X2 are designed for heavy-duty applications with a safe working load (SWL) of 2 tons (2000 kg). These shackles feature a hot-dipped galvanised finish for enhanced rust resistance and durability. The blue painted safety pin ensures that the pin remains secure, providing extra safety during use. With a safety factor of 5:1, these shackles are ideal for lifting and towing tasks. Technical specifications Product Code: SFUSSAB2 Product Weight: 0.7 kg SWL: 2 Ton (2000 kg) Body Finish: Hot Dipped Galvanised Dimensions: A (MM): 1 B (MM): 15.5 C (MM): 21 D (MM): 30.5 E (MM): 47 F (MM): 33 G (MM): 16.5 Usage Bow shackles are versatile and can be used for various applications, including lifting and towing. Their bow shape allows for a wider lifting point compared to Dee shackles, making them suitable for both inline lifting and lifting at angles of up to 45 degrees. Other information US Federal Specification RR-C-27IDIV Conforms to: BS EN 13889: 2003 +

Amazon

Designed to US Federal Specification RR-C-27IDIV. Drop forged and galvanised for strength and durability. Fitted with a safety pin for extra peace of mind and security when lifting. Safe Working Load of 2 Ton with a Safety Factor of 5:1 A=13MM, B=15.5MM, C=21MM, D=30.5MM, E=47MM, F=33MM, G=16.5MM, Manufacturer: SecureFix Direct
