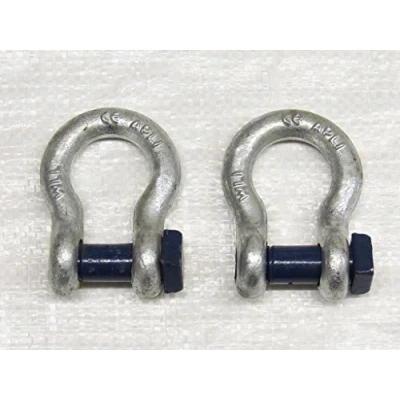

X2 2 Ton 13MM Galvanised Bow Shackles with Square Head 16MM Screw Pin

ManoMano

Bow Shackle With Square Head ManufactureD: Drop Forged Body Finish: Hot Dipped Galvanised, Pin Finish: Painted Safety Factor: 5:1 Safe Working Load - 2 Tons CODE SWL (TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) SFBPUSTBS2 2 13 16 22 29.5 47.5 33.5 16.75 SFBPUSTBS3.25 3.25 16.5 19 27.5 39 59.5 42 21 SFBPUSTBS4.75 4.75 19 22 33 47 71 50.5 25.5 SFBPUSTBS6.5 6.5 22.5 25.5 38.5 53 84.5 58 29 SFBPUSTBS9.5 9.5 26.5 31 44.5 55 112 73.5 40.8 SFBPUSTBS12 12 33 35.5 52 76.5 115 80.5 40.25 They Have A High Factor Of Safety To Ensure Optimum Safety When In Use. These Shackles Are Fitted With A Square Head Pin Making Them Ideal For Trawlers And Applications Where A Standard Pin Head May Cause Damage To Expensive Equipment. *Please Note Colour Can Vary To Picture* Test Certificate Supplied (Sent Via Email) *Please Note We Supply A Huge Variety Of Lifting Equipment* *** FREE DELIVERY ***

Amazon

Bow Shackle With Square Head Manufactured: Drop Forged Body Finish: Hot Dipped Galvanised, Pin Finish: Painted Safety Factor: 5:1 Safe Working Load - 2 Tons, Manufacturer: SecureFix Direct
