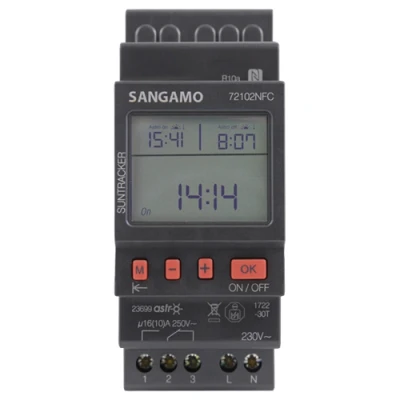

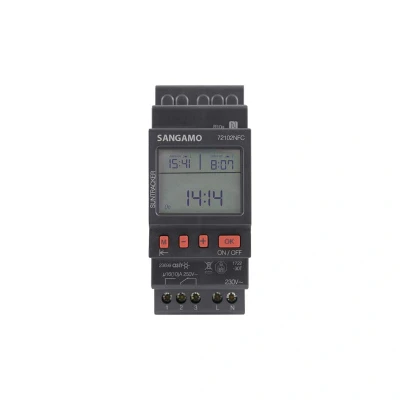

Sangamo Astro NFC 1 Module Channel, 24 hr Timer, 4 Operations

Electrical World

Astro NFC 1 Module 1 Channel, 24 hr Timer, 4 OperationsVolt-free 16A changeover contact 4 memory locations Basic Astro programming Works with Android NFC phones for programming Battery Reserve: 10 yearsTechnical Specification:Power Supply: 230V AC, 50/60HzProgramming: 4 OperationsDisplay: LCDMounting : DINCurrent Rating: 16ASwitching Capacity : 10A [email protected] Filament lamp 2,000W Halogen lamp 2,000W Fluorescent lamp uncompensated 1,000W Fluorescent lamp series compensated 1,000W Fluorescent lamp parallel compensated 550W Compact Fluorescent lamp 200W LED 230V AC 200WReserve: 10 yearsSwitching Functions : Astro ON/OFF, Night ON/OFFOffset Astro Switching Time : +/- 90 min.Memory Locations : 4Minimum Interval: 1 minProgram Security : unlimited (E2-PROM)Temperature Range: -30°C to +55°C Enclosure : Self-extinguishing thermoplasticType of Protection : IP20 to DIN EN 60529Dimensions: 90 x 36 x 63 mm

Expert Electrical

Sangamo NFC Din Astro 1 Mod 1 Channel 24HR Time Switch
