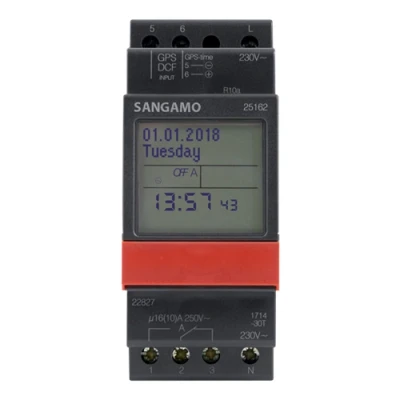

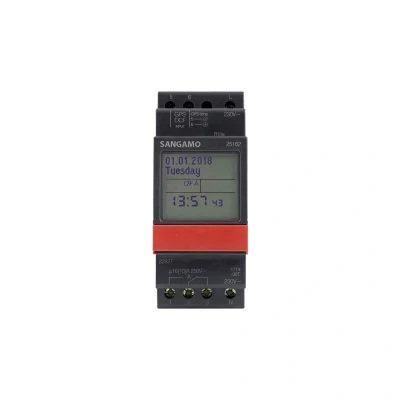

Sangamo Standard 2 Module 1 Channel, Yearly Timer, 300 Operations

Electrical World

Standard 2 Module 1 Channel, Yearly Timer, 300 OperationsVolt-free 16A changeover contact300 memory locationsStandard programmingWorks with key programming & EasyVUE connect (Key & hub are optional extras)Battery Reserve: 6 yearsExtra functions - special weekly programs, channel key assignmentTechnical SpecificationPower Supply: 230V AC, 50/60HzProgramming: 300 OperationsDisplay: LCDMounting: DINCurrent Rating: 16ASwitching Capacity: 10A [email protected], Filament lamp 2,000W, Halogen lamp 2,000W, Fluorescent lamp uncompensated 1,000VA, Fluorescent lamp series compensated 1,000VA, More Switching Capacity info available upon requestReserve: 6 yearsSwitching Functions: ON; OFF; Pulse; Cycle, Extra On/Off, Permanent On/OffPulse length - Pulse function (switching time): 00:01 up to 59.59 mm:ssPulse Length - Timer (man. switching): 0:00:01 up to 9:59:59 h:mm:ssMemory Locations: 300Minimum Interval: 1 minTemperature Range: -30°C to +55°C Enclosure: Self-extinguishing thermoplasticType of Protection: IP20 to DIN EN 60529Class of Protection: 2 when installed according to regulationsDimensions: 90 x 36 x 63 mmTechnical Specification:IP Rating: IP20Dimensions: Length: 63mm x Height: 90mmWarranty: 3 Years
