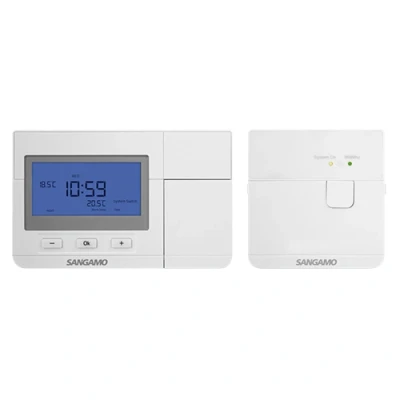

Sangamo Wireless Programmable Thermostat with Digital Display White

Electrical World

Wireless Thermostat with Programmable Schedules and Digital DisplayWireless Communication Between Thermostat and Receiver24 or 7 Day Programmable6 Time/Temperature Events per DayPermanent, Timed and Temporary Override FeaturesPre- Programmed Schedule Ready for UseElectronic Sensor for Accurate and Responsive PerformanceTPI (Time Proportional & Integral) Control for Heating EfficiencyOptimum Start/ Delay Start andDelayed Stop for Additional EfficiencyBattery Powered with Low Indication Status (Batteries Supplied)Summer/Winter Time Change5°C to 35°C Set Temperature Range0.5°C and 1°C Temperature Swing AdjustmentFrost ProtectionTransmission frequency: 868Mhz (80m Open Field, 30m Indoor Transmission)Receiver 16A Switch Rating 240vACTechnical SpecificationPower Supply: 4 x AAA Batteries & 240VAC, 50hz (Receiver)Operating Temperature: 0°C to 50°CCurrent Rating: 16ASwitching Differential: +/-0.5°C or +/-1.0°C selectableSet Temperature Range: 5°C to 35°CTemperature Accuracy: +/-1°CTemperature Display Range: 0°C to 50°CFrost Protection: Yes; 5°CTPI (Time Proportional & Integral) Control for Heating Efficiency: YesOptimum Start/ Delay Start and Optimum Stop for Additional Efficiency: YesProgramming Schedule: 24 Hour or 7 DaysAvailable Operations: Up to 6 per DaySensor Type: Electronic Sensor for Accurate and Responsive Performance Transmission Distance: 80m open, 30m indoorsTransmission Frequency: 433 MhzDimensions: 88mm x 88mm x 39.4mmComplies with: EN60730-1, En60730-2.9, EMC Directive 2004/108/EC, LVD Directive 2006/95/ECTechnical Specification:Colour: WhiteWarranty: 3 Years
