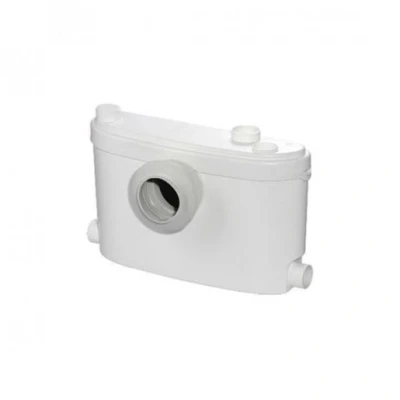

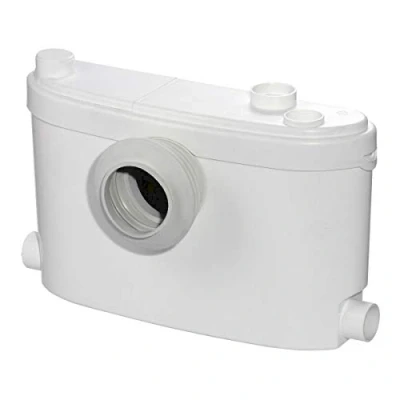

Saniflo Sanislim 1054 Bathroom Macerator Pump

Plumbworld

Key features:Designed for use with a toilet, shower, basin & bidetSmall bore macerator pumpDeals with all waste associated with small bathroom suitesSuitable for domestic applications2-year manufacturer's guaranteeCan be used with the Saniflo Alarm(which is optional) Have you ever wanted to install a toilet, washbasin or shower but not had the right plumbing in the right room to manage it? With the Sanislim this is a problem of the past! They’re designed to take all the waste from a small bathroom and pump this into the sewage network.The beauty of this particular appliance is that it’s only 145mm deep, making it ideal for installation behind a toilet. It also features inlets on either side of the unit so that a shower or a washbasin can also be fitted without any issues.The Sanislim is ideal for installation in a basement or loft conversion, or in any home improvement situation where large bore pipework isn’t practical.The unit pumps waste away through 22mm small-bore pipework, this can be up to 2.5 metres vertically or up to 40 metres horizontally (or a lesser combination of both).Saniflo cover this appliance with an incredible 2-year guarantee.4 InletsA 4 inlet macerator connects to a toilet and 3 of the following products:WashbasinShowerBidetTechnical Data:Inlet size: 100/40mmOutlet size: 22/28/32mmAverage temperature: 35°CDischarge Pipe Diameter: 22 / 32mmCompatible with shower amongst the WC, washbasin and bidetElectrical Supply (V/Hz): 220-240 / 50Outlet size – 22/28/32mmIso: EN 12050-3Min. Gravity Fall on Horizontal Run: 3mMotor Speed: 2800rpmWattage: 400Only 145mm depth required behind the WC. Clearance of 320mm is required from floor level to the underside of a close coupled suite to accommodate the discharge elbowDischarge Lengths:Vertical Discharge: 2.5mHorizontal Discharge: 40mDimensions:Height: 297mmWidth: 450mmDepth: 187mmDo not dispose of aggressive chemicals such as solvents, acids, paint strippers etc.Use a non-foaming brand disinfectant or deodorant to help clean the items and Saniflo unit.Avoid block cleansers affixed to the WC pan.Can be used with the Saniflo AlarmPack contains: Sanislim, non-return valve, connectors and activated carbon filter included to neutralise odoursAll Saniflo guarantees need to be registered directly with Saniflo. Please click here to do this.

ManoMano

GENERAL DESCRIPTION The Sanislim macerator pump allows you to install a toilet, washbasin, or shower in areas where traditional plumbing is not feasible. With a depth of only 145mm, it is perfect for installation behind a toilet and can handle waste from a small bathroom. This unit is ideal for basements, loft conversions, or any home improvement project where large pipes are impractical. TECHNICAL SPECIFICATIONS Average temperature: 35°C Discharge Pipe Diameter: 22 / 32mm Electrical Supply (V/Hz): 220-240 / 50 Motor Speed: 2800rpm Wattage: 400 Height: 447mm Width: 131mm Depth: 270mm Vertical Discharge: 2.5m Horizontal Discharge: 40m COMPATIBILITY AND ACCESSORIES Compatible with WC, showers, washbasin, and bidet. Can be fitted with Sanialarm. USAGE Do not dispose of aggressive chemicals such as solvents, acids, or paint strippers through the unit. Use a non-foaming disinfectant to clean the unit and avoid block cleansers attached to the WC pan.

City Plumbing

The Saniflo Sanislim (1054) is a macerating toilet waste water pump. With inlets on either side of the unit, the Sanislim is able to clear the waste from a WC first, and grey water from a shower, wash basin and bidet. The maceration process breaks down sewage/waste material and pumps the grey water away. Compact for easy installation, only 145 mm depth required behind the WC and 320mm clearance is required from floor level to the underside of a close-coupled suite to accommodate the discharge elbow.
