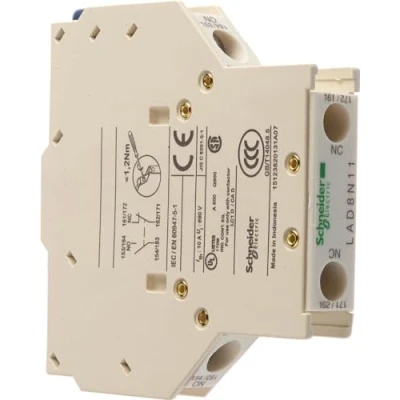

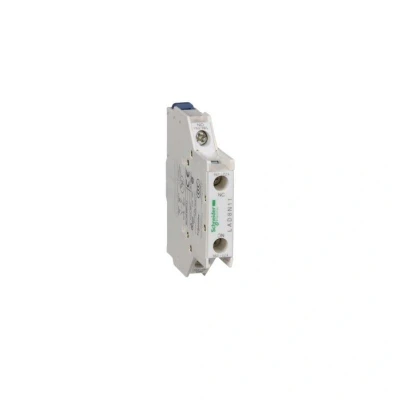

Schneider Electric, Auxiliary contact block, TeSys D, 1NO + 1NC, side mounting, screw clamp terminals, LAD8N11

General description The Telemecanique LAD8N11 is an auxiliary contact block designed for use with the TeSys range. It features a composition of 1 normally open (NO) and 1 normally closed (NC) contact, providing reliable instantaneous operation. Technical specifications Product type: Auxiliary contact block Composition of poles: 1F+1O Minimum switching voltage: 17 V Non-overlap time: 1.5 ms on de-energization / 1.5 ms on energization Overlap time: 1.5 ms Insulation resistance: < 10 MΩ Width: 12.5 mm Product mass: 0.03 kg
