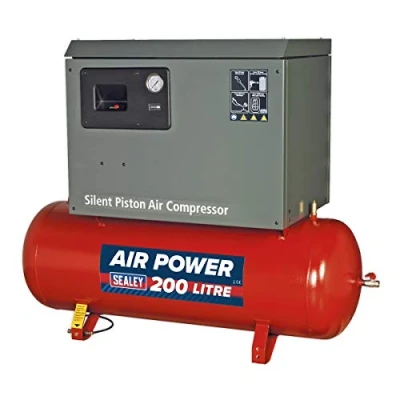

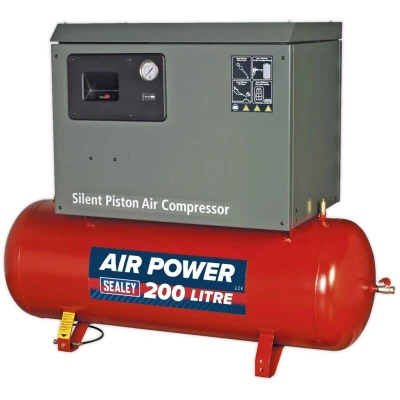

Sealey Air Compressor 200L Belt Drive 3hp with Cast Cylinders Low Noise

The heavy-duty low noise compressor is designed specifically for garage, bodyshop, and industrial applications, offering an impressive combination of performance and durability. This compressor features a robust construction with a cast iron cylinder head, enabling slower revving for improved pump life and reliability.

Quiet Operation

One of the standout features of this compressor is its fully enclosed and insulated design, which allows for quiet running at just 68dB(A) from a distance of 1 meter. This makes it an ideal choice for noise-sensitive environments where minimal disruption is desired. The enclosure also protects vital components from potential damage, ensuring longevity and consistent performance.

Performance Specifications

The compressor boasts an air displacement of 15 cubic feet per minute (cfm), or 425 litres per minute, along with a maximum free air delivery of 10.9 cfm (309 L/min). This robust performance is complemented by a maximum pressure capability of 145 psi (10 bar), making it suitable for a wide range of applications, from powering tools to inflating tyres and more.

Key Features

- Fully automatic pressure cut-out switch: This feature enhances safety by preventing over-pressurisation, automatically shutting off the compressor when the desired pressure level is reached.

- Tank pressure gauge: Easily monitor the pressure levels within the tank, ensuring optimal operation.

- Single-phase electric motor: The heavy-duty motor is equipped with a soft start feature, reducing the initial load and extending the motor's life while improving efficiency.

Operation and Maintenance

The control box includes a tachometer for monitoring use, allowing users to optimise service times effectively. This added functionality helps to extend the lifespan of the compressor and maintain peak performance through proper maintenance routines.

Technical Specifications

The compressor is powered by a 3 hp motor and requires a minimum rated supply of 16 amps. It has a nett weight of 175 kg and a receiver capacity of 200 litres, making it both substantial and efficient for heavy-duty use. The dimensions of the compressor are 1440 mm in width, 440 mm in depth, and 1210 mm in height, easily fitting into many workspace setups.

Safety Certifications

The compressor is supplied with full CE certification, ensuring that it meets essential safety and performance standards. Additionally, a test certificate and an operating/maintenance manual are provided, equipping users with the necessary information to operate the compressor safely and effectively.

This heavy-duty low noise compressor is a reliable solution for those seeking a powerful tool for professional applications, delivering performance without the noise, and backed by solid construction and technical specifications.
