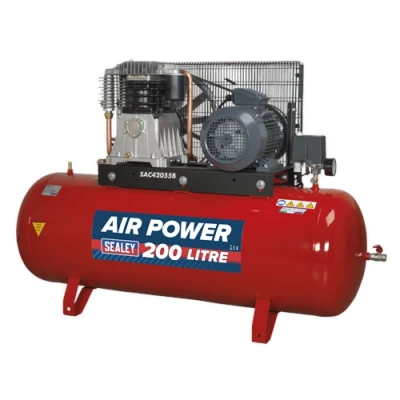

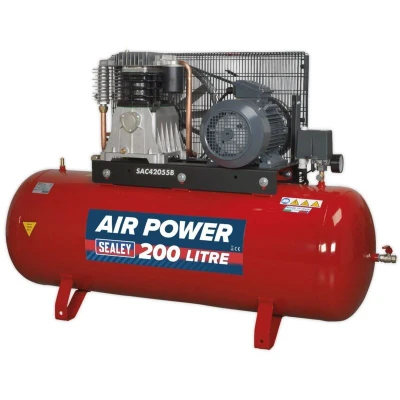

Sealey Air Compressor 200L Belt Drive 5.5hp 3ph 2 Stage with Cast Cylinders

Introducing a robust solution for professional workshops, the heavy-duty 3-phase air compressor is designed to deliver exceptional performance for a variety of applications. Engineered with a powerful 5.5hp motor and a 2-stage pump system, this compressor ensures efficient operation and low running costs compared to single-stage models, making it an ideal choice for demanding environments.

Technical Specifications

- Air Displacement: 20.7 cfm (586 L/min)

- Maximum Free Air Delivery: 15.1 cfm (419 L/min)

- Maximum Pressure: 145 psi (10 bar)

- Minimum Rated Supply: 32A

- Receiver Capacity: 200L

- Outlet: 1/2" BSP Female Tap

- Dimensions (W x D x H): 1440 x 440 x 965 mm

- Weight: 135 kg

- Phase: 3ph

- Speed: 1490 rpm

- Supply Voltage: 415V

- Warranty: 1 year

Equipped with heavy-duty full cast cylinders and alloy heads, this pump is designed for improved heat dissipation, thereby extending its lifespan under continuous use. The compressor’s construction features heavy-duty drive guards that not only protect vital components such as the belt and flywheel but also help in forcefully directing air over the pump, enhancing cooling efficiency during operation.

Durability and Performance

This compressor is suited for a professional workshop setting, where reliability and performance are paramount. The robust design accommodates rigorous workloads while ensuring that it operates smoothly and efficiently. The 2-stage pump system optimizes air delivery, allowing for more extensive usage in various applications such as automotive repairs, pneumatic tools, and spray painting.

Safety and compliance are prioritized, with this model supplied with full CE certification, along with test certificates and an operating/maintenance manual, ensuring users have access to essential information for optimal use and maintenance.

Important Delivery Information

Due to its substantial weight of 135 kg, extra assistance may be required at the delivery point to ensure safe handling and placement of the unit.

In summary, this heavy-duty 3-phase air compressor provides an unparalleled solution for professionals seeking a reliable and efficient air supply system. With superior build quality, excellent performance specifications, and comprehensive safety certifications, it stands as a key piece of equipment for any high-demand workshop setting.
