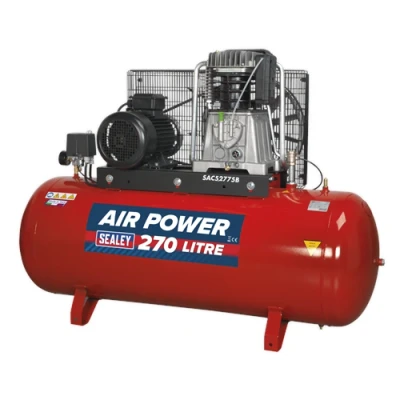

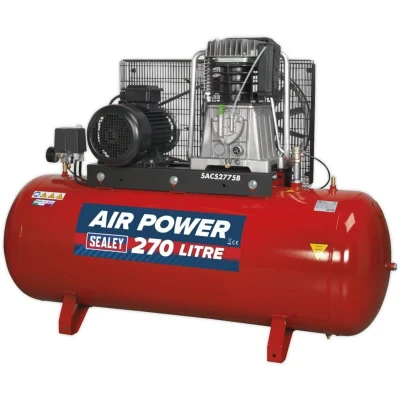

Sealey Air Compressor 270L Belt Drive 7.5hp 3ph 2 Stage with Cast Cylinders

The Heavy-Duty 3-Phase Compressor is the ideal solution for professional workshops requiring reliable and efficient air power. Designed with advanced technology, this compressor features a robust 2-stage pump system that is coupled with a powerful 7.5hp motor. This combination ensures high performance while keeping running costs lower compared to traditional single-stage, single-phase compressors.

Technical Specifications

- Air Displacement: 29.7 cfm (841 L/min)

- Maximum Free Air Delivery: 21.5 cfm (609 L/min)

- Maximum Pressure: 145 psi (10 bar)

- Motor Output: 7.5 hp

- Nett Weight: 143 kg

- Outlet: 1/2" BSP Female Tap

- Phase: 3-phase

- Receiver Capacity: 270 L

- Dimensions (W x D x H): 1550 x 510 x 1070 mm

- Speed: 1280 rpm

- Supply Voltage: 415 V

- Warranty: 1 year

Design and Durability

The compressor is built to withstand the rigors of daily use in a professional environment. Its pump is constructed using heavy-duty full cast cylinders, topped with an alloy head to enhance heat dissipation. This not only prolongs the life of the compressor but also ensures consistent performance, even during extended periods of operation.

The design includes heavy-duty drive guards that protect the belt and flywheel, which are specifically engineered to channel air over the pump for optimal cooling. Such innovative features enhance the durability and efficiency of this heavy-duty unit, making it a reliable choice for workshops that require high-volume air delivery.

Safety and Certification

For added peace of mind, this compressor comes with full CE certification, along with test certificates and an operating/maintenance manual. This ensures that the product meets stringent safety and quality standards, providing users with confidence in their purchase.

Usage Considerations

It is important to note that this compressor is a heavy-duty piece of machinery that requires additional assistance at the delivery point to ensure safe delivery. Its substantial weight (164 kg) and sizable dimensions mean it is best suitable for professional environments that can accommodate its needs.

This Heavy-Duty 3-Phase Compressor not only promises exceptional performance and reliability but also combines user-friendly features that cater to the demanding needs of any professional workshop, making it a valuable investment for those in need of a dependable air compressor.
