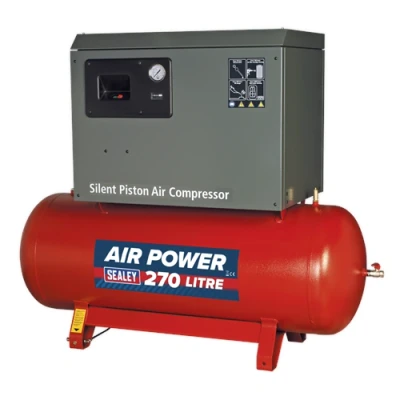

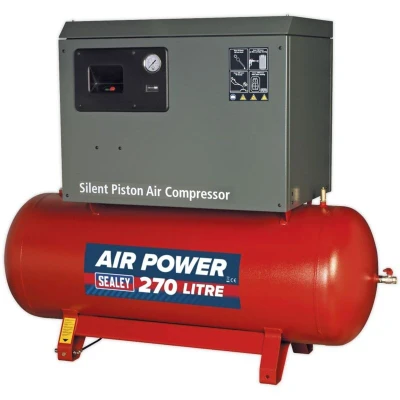

Sealey Air Compressor 270L Belt Drive 5.5hp 3ph 2 Stage with Cast Cylinders Low Noise

The heavy-duty low-noise compressor is an ideal choice for garage, bodyshop, and industrial applications, delivering reliability and quiet performance. With an impressive air displacement of 21.1 cfm (598 L/min) and a maximum free air delivery of 15.3 cfm (434 L/min), this compressor meets the rigorous demands of various tasks while ensuring efficient operation.

Performance Features

This compressor boasts a maximum pressure of 145 psi (10 bar), making it suitable for a wide range of pneumatic tools and machinery. Its robust design includes a cast iron cylinder head that enables slower revving, enhancing pump life and reducing wear. The fully enclosed and insulated design minimizes noise levels to just 69 dB(A) at 1 meter, allowing for quieter work environments while protecting vital components from potential damage.

The heavy-duty 3-phase electric motor is equipped with a soft start feature, ensuring a smooth power-up and reducing electrical strain. The control box includes a tachometer that allows users to monitor operational performance, enabling optimal service times and maintenance scheduling.

Safety and Functionality

Safety features include a fully automatic pressure cut-out switch, which automatically turns off the compressor when the set pressure is reached, preventing over-pressurization. Additionally, a tank pressure gauge provides real-time feedback on the internal pressure, ensuring safe and efficient operation.

Specifications

- Air Displacement: 21.1 cfm (598 L/min)

- Maximum Free Air Delivery: 15.3 cfm (434 L/min)

- Maximum Pressure: 145 psi (10 bar)

- Minimum Rated Supply: 32A

- Motor Output: 5.5 hp

- Net Weight: 198 kg

- Noise Level: 69 dB(A)

- Outlet: 1/2" BSP Female Tap

- Phase: 3ph

- Receiver Capacity: 270 L

- Overall Dimensions (W x D x H): 1550 x 600 x 1260 mm

- Speed: 1516 rpm

- Supply Voltage: 415V

Design and Construction

Built to last, this compressor is designed for demanding conditions, making it an excellent investment for professionals who require both performance and durability. The size of the compressor is well-suited for industrial applications, yet it is compact enough for use in smaller workshops.

In summary, the heavy-duty low-noise compressor is a dependable and efficient solution for those in need of high-performance air compression. With its thoughtful design, advanced safety features, and quiet operation, it is the perfect addition to any professional workspace.
