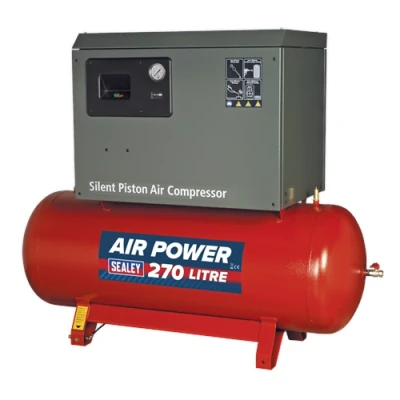

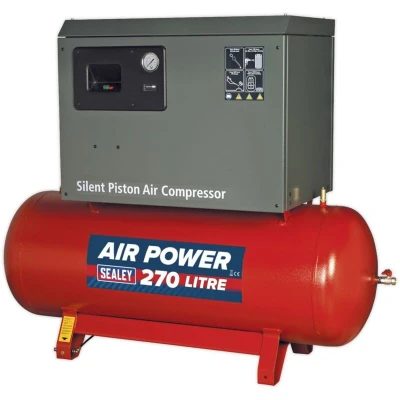

Sealey Compressor 270L Belt Drive 7.5hp 3ph 2 Stage with Cast Cylinders Low Noise

Introducing a heavy-duty low noise compressor designed for garage, body shop, and industrial applications. This unit is engineered to deliver powerful performance while maintaining a quiet operation, making it suitable for environments where noise levels must be kept to a minimum.

Key Features

- Air Displacement: With an impressive air displacement of 32.6 cfm (924 L/min), this compressor can handle a wide range of tasks efficiently.

- Maximum Free Air Delivery: The compressor offers a maximum free air delivery of 23.6 cfm (668 L/min), ensuring optimal performance for various applications.

- Maximum Pressure: Operating at a maximum pressure of 145 psi (10 bar), it provides sufficient power for demanding tasks.

- Durable Construction: The compressor features a cast iron cylinder head that allows for slower revving, thereby enhancing pump life and durability.

- Quiet Operation: Thanks to its fully enclosed and insulated design, this model operates at just 66 dB(A) (measured at 1 meter), effectively protecting vital components from damage while keeping noise to a minimum.

- Automatic Features: It comes equipped with a fully automatic pressure cut-out switch and a tank pressure gauge for accurate monitoring and user convenience.

Motor and Control System

This compressor is powered by a heavy-duty 3-phase electric motor with a soft start feature, which reduces stress on electrical components at startup. The control box is fitted with a tachometer, allowing users to monitor operational performance and optimize service intervals effectively.

Specifications

- Minimum Rated Supply: Requires a supply of 32A for optimal operation.

- Motor Output: The compressor boasts a robust motor output of 7.5 hp.

- Nett Weight: The unit weighs in at a substantial 213 kg, reflecting its heavy-duty design.

- Noise Level: Operating at a noise level of 66 dB(A), it is suitable for noise-sensitive environments.

- Outlet: Features a 1/2" BSP female tap outlet for versatile connectivity.

- Phase: This model operates on a 3-phase power supply.

- Receiver Capacity: With a receiver capacity of 270 liters, it caters to high-demand applications without frequent refilling.

- Dimensions: The overall dimensions are 1550 mm (W) x 600 mm (D) x 1260 mm (H).

- Speed: The compressor runs at a speed of 1280 rpm.

Conclusion

This heavy-duty low noise compressor stands out for its combination of power, efficiency, and durability. Whether you are using it in a garage, body shop, or industrial setting, its quiet operation and robust construction make it a reliable choice for all your compressed air needs.
