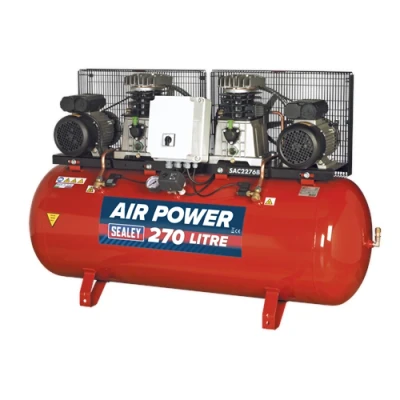

Sealey Air Compressor 270L Belt Drive 2 x 3hp with Cast Cylinders

This high-output air compressor is an essential tool for any professional workshop, designed to meet the rigorous demands of industrial applications. Engineered for reliability and efficiency, the unit is equipped with two genuine 3hp motors and two identical pumps that work in tandem to deliver exceptional performance.

Specifications and Performance

- Air Displacement: 30 cfm (850 L/min)

- Maximum Free Air Delivery: 21.8 cfm (618 L/min)

- Maximum Pressure: 145 psi (10 bar)

The compressor is capable of impressive air displacement, making it suitable for powering multiple air tools simultaneously. With a maximum pressure rating of 145 psi, it can handle demanding inflation and spray applications with ease.

Design and Build Quality

Built with durability in mind, this unit features heavy-duty full cast cylinders along with alloy heads that enhance heat dissipation and ensure long service life. The design integrates robust drive guards that protect the belt and flywheel, which are specifically engineered to promote efficient airflow over the pump to aid in cooling. This is crucial for maintaining optimal performance even during extended use.

Starting and Operation

To ensure reliable operation, the compressor is fitted with twin capacitors and a centrifugal switch, enabling trouble-free starting on a standard 230V, 32A supply. A sophisticated control box offers a stepped start-up feature, effectively preventing high Amp spikes that could potentially damage electrical systems and improve operational safety.

Dimensions and Weight

- Nett Weight: 150 kg

- Receiver Capacity: 270 L

- Size: 1550 x 540 x 960 mm

This compressor is a substantial piece of equipment, weighing in at 150 kg. Its robust design means that extra assistance may be required during delivery and installation.

Connectivity

The unit comes with a 3/4" BSP female outlet, facilitating easy integration with a variety of air hoses and fittings. This flexibility allows users to easily adapt the compressor to their specific needs and applications, enhancing its usability across different tasks.

In summary, this high-output air compressor is an indispensable asset for any professional workshop, providing reliable air power with its robust construction and high performance. Whether you are using it for pneumatic tools or inflation, this compressor is built to perform efficiently and withstand the rigors of daily use.
