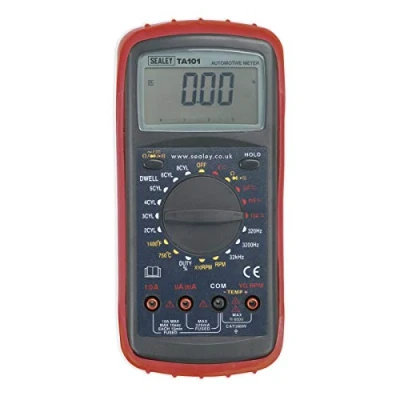

Sealey Digital Automotive Analyser 12 Function

This advanced diagnostic meter is designed for use in demanding workshop conditions, ensuring durability and reliability for automotive professionals and hobbyists alike. Featuring a robust case and an integral stand, this device is engineered to withstand the rigors of daily use, making it an ideal tool for any technician.

Display and User Interface

The meter is equipped with a large, high-contrast LCD display, providing a clear 18mm digital read-out alongside an analogue bar graph. This dual display format allows for quick and effortless readings, facilitating fast decision-making during diagnostics. The bar graph feature is particularly useful when testing lambda sensors, simplifying the process of monitoring performance metrics.

Key Functions

This diagnostic meter comes packed with several essential functionalities that enhance its usability:

- Auto-ranging capability allows the meter to automatically select the optimal range for voltage, current, and resistance measurements, reducing user error and saving time.

- Data hold function captures and retains the displayed measurement, making it easy to record values without needing to continue holding the probes in place.

- Auto-polarity indicates the correct polarity when measuring DC voltage and current, streamlining the measurement process.

- An auto-power-off feature conserves battery life by turning off the device after a set period of inactivity.

- A low battery display ensures you are notified when it is time to replace the batteries.

Technical Specifications

The meter offers a wide range of measurement capabilities, making it a versatile addition to any toolset. The specifications include:

- Tachometer (rpm): 0-3260 (x1)rpm, 0-3260 (x10)rpm

- Dwell Angle for Various Cylinder Counts: Measurable for 2, 3, 4, 5, 6, and 8 cylinder configurations with specific degrees.

- AC & DC Voltage: Ranging from 326mV to 600V (auto-ranging) for both current types.

- AC & DC Current: Capability to measure from 326µA to 10A (auto-ranging for µA & mA).

- Resistance Measurement: Ranges from 326Ω to 32.6MΩ (auto-ranging).

- Frequency Measurement: Allows for manual range selection up to 32kHz.

Included Accessories

The diagnostic meter is supplied with essential accessories, including capped test probes for safe measurements and a K-type thermocouple, expanding its functionality for various applications.

Overall, this diagnostic meter combines robust construction with advanced features, ensuring it meets the needs of technicians in professional workshop environments. Its intuitive interface, extensive measurement range, and thoughtful design make it an indispensable tool for automotive diagnostics.
