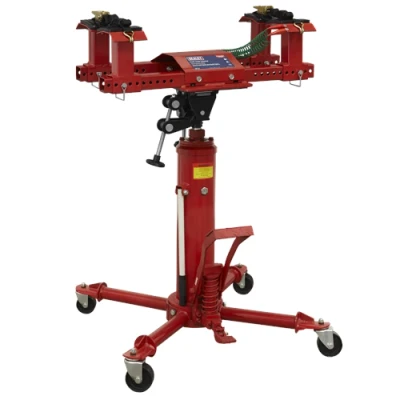

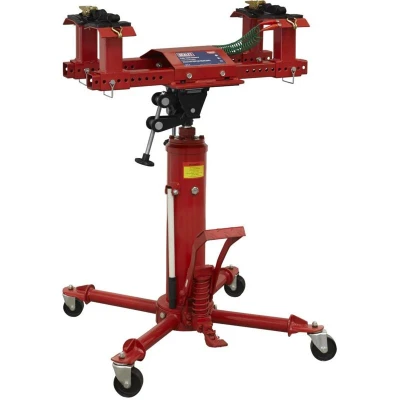

Sealey Fuel Tank Cradle & 500kg Transmission Jack Combo

The telescopic ram is a key feature of this transmission jack, designed with a two-stage mechanism to reduce clearance, making it an efficient choice for automotive applications. One of its standout attributes is the high-speed lift capability, which allows for a quick ascent when unladen, minimizing the number of foot pumps needed to reach the desired height. However, when laden, the lift slows down to enable precise control and accuracy, ensuring safer operation.

The foot pedal operation is an incredibly practical addition, enabling users to keep their hands free for any necessary fixings and adjustments while lifting the load. Safety is paramount with this device, as it includes a spring-loaded dead man's safety release control to mitigate the risks of inadvertent lowering during operation.

Mobility is another benefit that users will appreciate; the large, smooth-running castors facilitate quick and easy positioning of the jack, making it highly manoeuvrable even in tight spaces. The jack is built to accommodate large fuel tanks—specifically, it can handle automotive and light commercial fuel tanks of up to 40 gallons. Note that the tank must be emptied before handling for optimal safety and efficiency.

Versatility is a strong point of this transmission jack, featuring four adjustable support arms that can be easily configured to fit various tank shapes and sizes. To enhance the safety of the fuel tank during use, the jack is equipped with rubber pads that protect the tank from damage. Additionally, it comes with two load restraint straps to further secure the tank while being lifted.

As for assembly, the process is straightforward—the adaptor can be fitted and removed from the transmission jack with ease, allowing users to switch between different configurations without hassle.

# Technical Specifications

- Capacity: 500TTJ - 500kg, FTC01 - 565kg

- Fixed/Adjustable Saddle: Adjustable

- Maximum Saddle Height: 1875mm

- Minimum Saddle Height: 890mm

- Nett Weight: 97.5kg

- Pump Strokes to Maximum Height: Not applicable

- Ram Extensions: 2

- Saddle Adjustment - Left-to-Right: 65mm

- Saddle Tilt - Backward: 22°

- Saddle Tilt - Forward: 28°

This robust transmission jack, paired with the FTC01 fuel tank cradle adaptor for TTJ transmission jacks, is an indispensable tool for both professional mechanics and serious DIY enthusiasts, combining safety, versatility, and efficiency in one powerful package.
