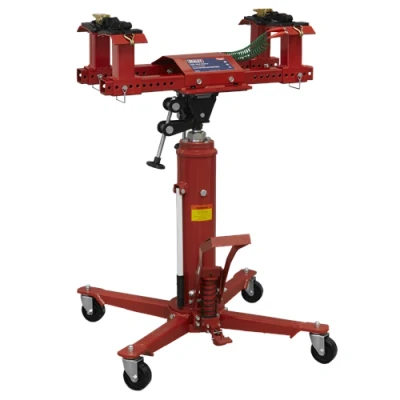

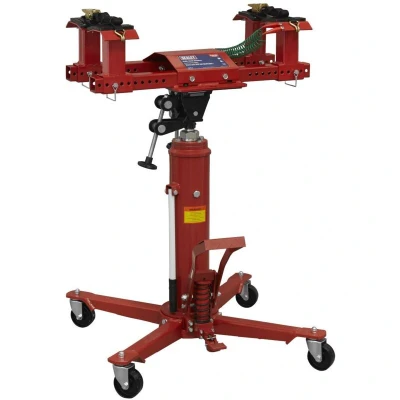

Sealey Fuel Tank Cradle and 800kg Transmission Jack Combo

The two-stage telescopic ram of this transmission jack ensures reduced clearance, making it ideal for tight spaces. Engineered for efficiency, the high-speed lift feature allows for quick elevation when unladen, significantly reducing the number of foot pumps required. When loaded, the ram's speed decreases, providing enhanced control and accuracy during operation.

Designed for ease of use, the foot pedal operation keeps hands free for fixing and adjustments, allowing for a more efficient workflow in automotive and light commercial settings. Safety is a paramount concern with this model, featuring a spring-loaded dead man's safety release control that minimizes the risk of inadvertent lowering, protecting both the user and the equipment.

Mobility is another key attribute of this transmission jack, equipped with large, smooth-running castors that facilitate quick and easy positioning. Its robust design supports a large capacity of up to 40 gallons, specifically tailored for automotive and light commercial fuel tanks. It is important to note that tanks must be emptied before handling to ensure safety.

Versatility is inherent in the four adjustable support arms, which can be easily configured to accommodate various shapes and sizes of tanks. Additionally, rubber pads are incorporated to protect the tank while it is being supported, safeguarding against damage during the lifting process. To further enhance safety, the jack includes two load restraint straps, ensuring that the tank remains securely in place throughout operations.

Assembly is straightforward, as the adaptor can be fitted and removed from the transmission jack with ease whenever required. This simplifies the process of transitioning between different tasks or when needing to store the jack compactly.

Technical specifications for this product include a base size of 1046 x 1046mm, a capacity of 800kg for the 800TTJ model and 565kg for the FTC01 fuel tank cradle adaptor. It has an adjustable saddle with a maximum height of 1920mm and a minimum height of 960mm. The nett weight of the unit is 112kg, which reflects its sturdy construction built for heavy-duty use.

With features tailored for both safety and performance, this telescopic transmission jack is an essential tool for professionals working with fuel tanks and similar equipment. It combines functionality, safety, and versatility in one comprehensive package, making it an invaluable addition to any automotive workshop.
