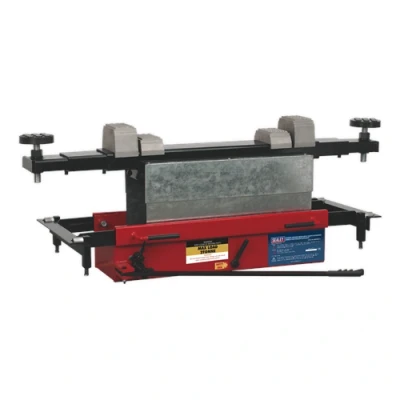

Sealey Jacking Beam 2 Tonne with Arm Extenders & Flat Roller Supports

The lifting equipment is fully certified and approved, ensuring compliance with MOT requirements. Designed for efficiency and safety, this unit features a comprehensive set of attributes that enhance its usability in various lifting situations.

Design and Safety Features

Equipped with a 2-stage mechanical safety lock and telescopic finger guards, this device prioritizes user safety by preventing accidental injuries during operation. The beam includes spring-loaded flat arms fitted with roller bearings, which significantly improve the smooth operation of the unit. When the beam is unloaded, these arms support its weight, allowing seamless movement along the pit or ramp. Conversely, once loaded, they effectively stabilize the unit, ensuring reliable performance during lifts.

Operational Specifications

- Load Arm Reach: 1.6 meters, providing ample reach for a variety of vehicles.

- Beam Lift: Adjustable height ranging from 95mm to 300mm, accommodating different lifting requirements.

- Capacity: Designed to lift up to 2 tonnes, making it suitable for a wide range of applications.

- Load Arm Reach: Ranges from 850mm to 1600mm, allowing for flexibility in lifting.

- Support Arm Reach: Varies between 780mm to 1075mm, adding to the versatility of the lifting capabilities.

Additional Equipment

The unit comes supplied with two pairs of aluminium support blocks, enhancing stability during use. Optional hook arms are also included, making it adaptable for various lifting scenarios and ensuring that it meets the wide lift configuration necessary for lifting at jacking points, in adherence with MOT recommendations.

Dimensions and Weight

The overall dimensions of the unit are 490mm in length and 345mm in height, making it compact enough for easy storage while robust enough to handle demanding lifting tasks. It has a nett weight of 94kg and a total weight of 109kg, indicating a solid construction designed for durability and longevity.

Warranty

This lifting equipment is backed by a 1-year warranty, giving users peace of mind regarding its quality and performance over time.

Designed with the user in mind, this lifting unit combines robust engineering with essential safety features, making it an indispensable tool for anyone needing reliable lifting solutions compliant with industry standards. Whether in workshops or service stations, this equipment promises to enhance operational efficiency while maintaining the highest safety standards.
