Sealey Mini Lathe & Drilling Machine

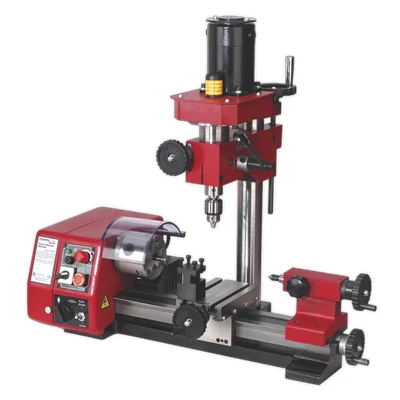

The bench mounting multifunction mini drill, mill, and lathe is an exceptional tool, designed to provide flexibility and precision for handling a wide range of materials. This compact yet powerful machine is equipped with two robust 150W motors: one dedicated to operating the drill and milling functions, while the other powers the lathe, ensuring efficient and effective performance across various applications.

Versatile Functionality

This multifunctional device allows users to switch seamlessly between drilling, milling, and lathe operations, making it an ideal choice for hobbyists and professionals alike. With its variable speed settings, the machine caters to different material types and project requirements. The lathe cutting feed offers two modes of operation: power-driven for precision work and manual advancement for greater control during intricate cutting tasks.

One of the standout features of this mini drill, mill, and lathe is its capability to perform thread cutting operations. An optional thread cutting kit is available, expanding the machine's versatility further and enabling users to take on more complex projects.

<a class='cat-link' href='https://bigshopper.co.uk/brand/precision/'>Precision</a> Engineering

Engineered for accuracy, this multifunction machine is supplied with metric graduated scales, allowing for easy and precise measurements during operation. Additionally, it comes with all the necessary tools required for setting up and adjusting the device, ensuring users have everything they need right out of the box.

Specifications

The machine boasts impressive specifications that contribute to its performance:

- Nett Weight: 39.2 kg

- Alignment and Capacity:

- Swing Over Bed: 140 mm

- Distance Between Centres: 250 mm

- Spindle Hole Taper: MT2

- Cross Slide Travel: 61 mm

- Tailstock Taper: MT1

- Spindle Speed (Variable): 100-2000 rpm

- Range of Metric Threads: 5 Pitches (0.5-1.25 mm)

For drilling and milling tasks, the specifications are equally robust:

- Maximum Drilling/Milling Capacity: 10 mm

- Drilling/Milling Spindle Travel: 30 mm

- Drilling/Milling Spindle Speed: 100-1300 rpm

- T-Slot: 8 mm

- Distance from Spindle to Table: 180 mm

- Distance from Spindle Centre to column: 100 mm

- Total Motor Power: 2 x 150W - 230V

Build Quality and Dimensions

Constructed with durability in mind, the machine weighs 48.42 kg and measures 615 mm in length and 700 mm in height. It conforms to the Machinery Directive and is fully CE approved, ensuring it meets rigorous safety and quality standards.

The optional stand (Model No. SM3002ST) provides an additional feature for users looking to enhance their workspace ergonomics by elevating the machine to a more convenient working height.

With its comprehensive features and high-quality construction, this multifunction mini drill, mill, and lathe meets the needs of anyone looking for a reliable and efficient machine for their machining projects.
