Sealey Trolley Geared 1 Tonne

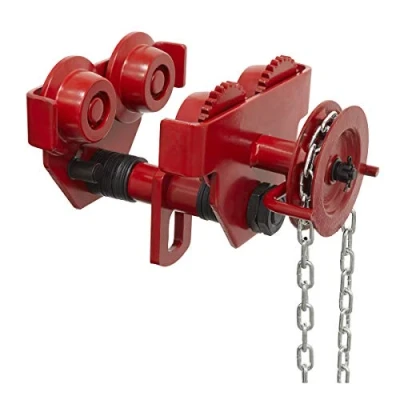

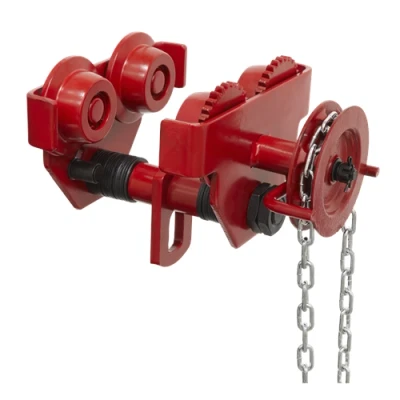

The PT1000G Geared Block Trolley is an essential tool designed for facilitating the safe and efficient movement of heavy loads along a gantry. This trolley is specifically engineered for use with lever hoists or chain blocks and is ideal for mounting onto an I-beam or RSJ, allowing for lateral manoeuvrability of the load. This design not only enhances efficiency but also reduces the need for manual handling, making it an indispensable asset in various industrial and construction settings.

Key Features

- Suitable for use with lever hoists or chain blocks

- Designed for mounting onto an I-beam or RSJ track

- Enables sideways movement of loads, enhancing operational flexibility

- Incorporates wheel guards to prevent contact with other trolleys mounted on the same load bearer

The trolley is equipped with a robust adjustable track width, allowing for a range from 64mm to 140mm. This flexibility ensures compatibility with a variety of I-beam specifications, making it a versatile choice for different applications. The minimum curve radius of 1000mm provides smooth operation, especially in environments where space is limited.

Technical Specifications

- Model No: PT1000G

- Capacity: 1000kg

- Test Load: 1500kg

- Track Width Adjustable Range: 64-140mm

- Minimum Curve Radius: 1000mm

- Overall Dimensions: Length 285mm x Height 200mm

- Weight: 17kg (approximately 37.57 pounds)

I-Beam Compatibility

To ensure the best performance, the PT1000G is designed to fit within a specified range of I-beam dimensions. The minimum standard I-beam dimensions (Depth x Width x Web thickness) compatible with this trolley are 125mm x 75mm x 5.5mm, while the maximum dimensions are 250mm x 125mm x 7.5mm. The trolley can handle spans up to 2500mm for minimum distances and accommodates maximum spans of 6000mm, providing ample range for various lifting and moving tasks.

This geared block trolley is a robust solution for moving heavy materials smoothly and safely. Its high-quality construction features ensure durability and long-lasting performance, making it suitable for continuous use in demanding environments. Whether in warehouses, construction sites, or manufacturing plants, the PT1000G Geared Block Trolley is engineered to meet the heavy-duty demands of loads management with safety and ease.

With the PT1000G, operations can be optimized, ensuring that heavy loads are moved efficiently and securely, thereby enhancing productivity and safety on the job.
